FGT 27-148

NILPETER FA-4 – 8-color

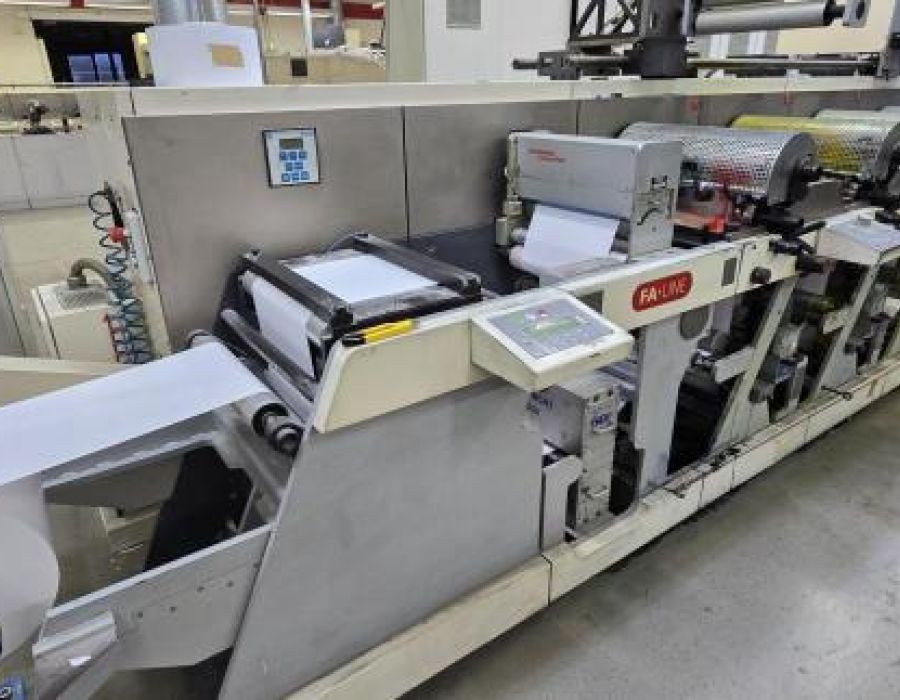

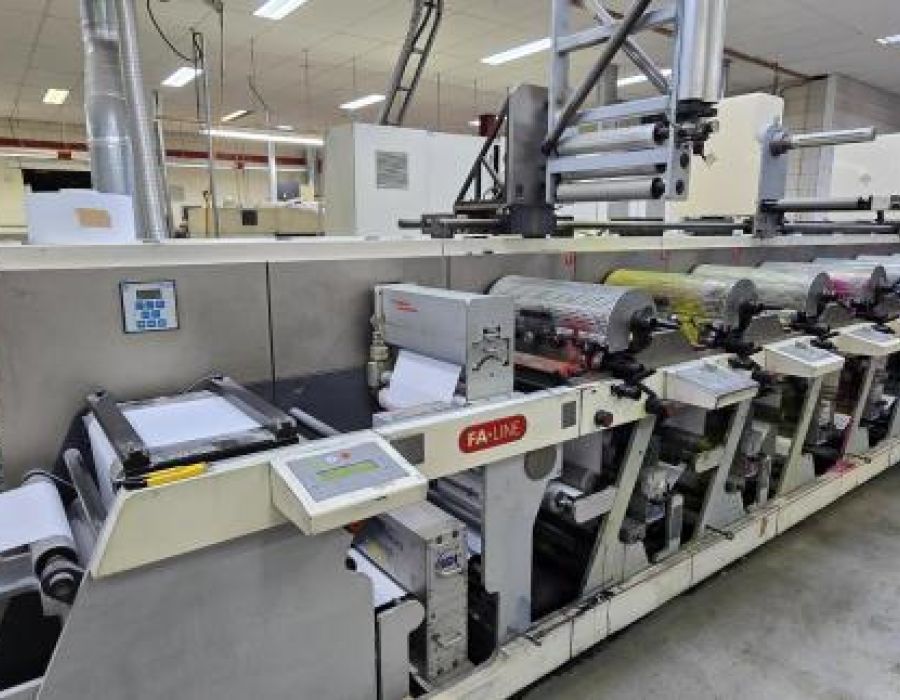

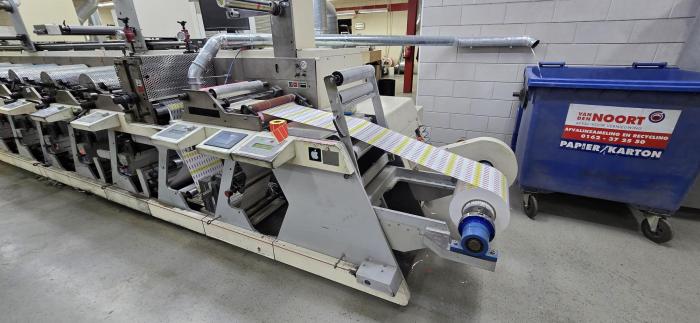

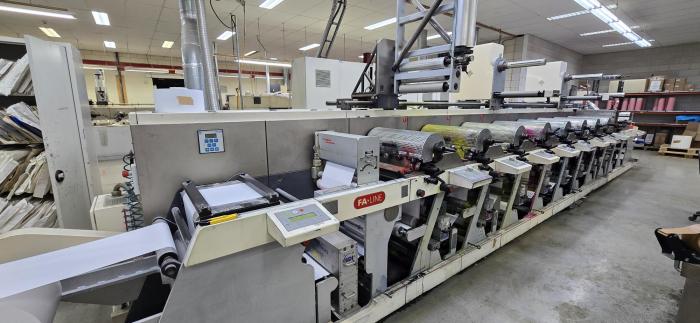

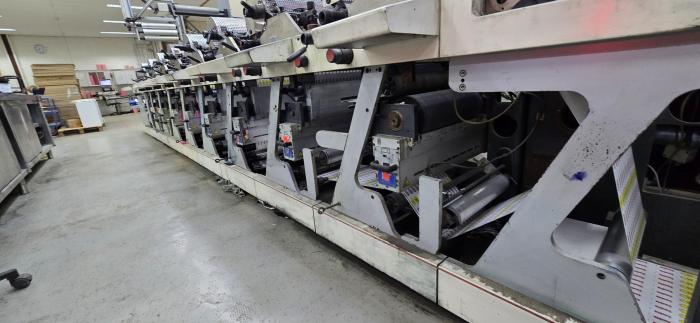

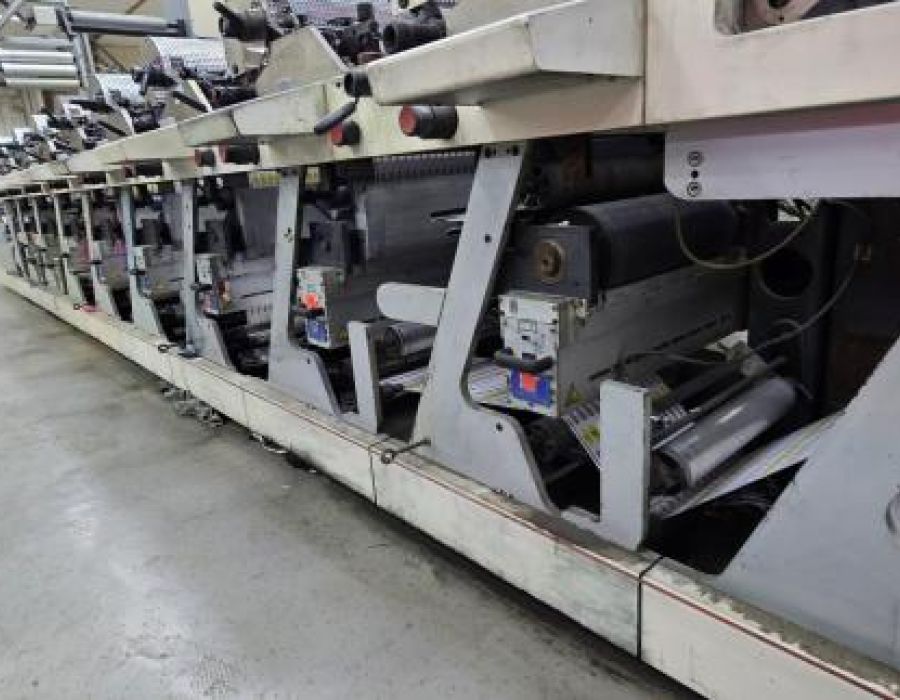

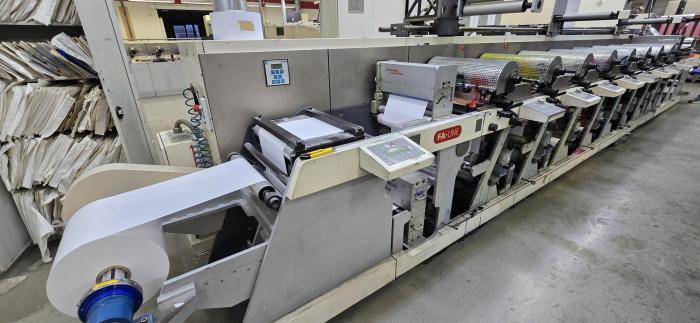

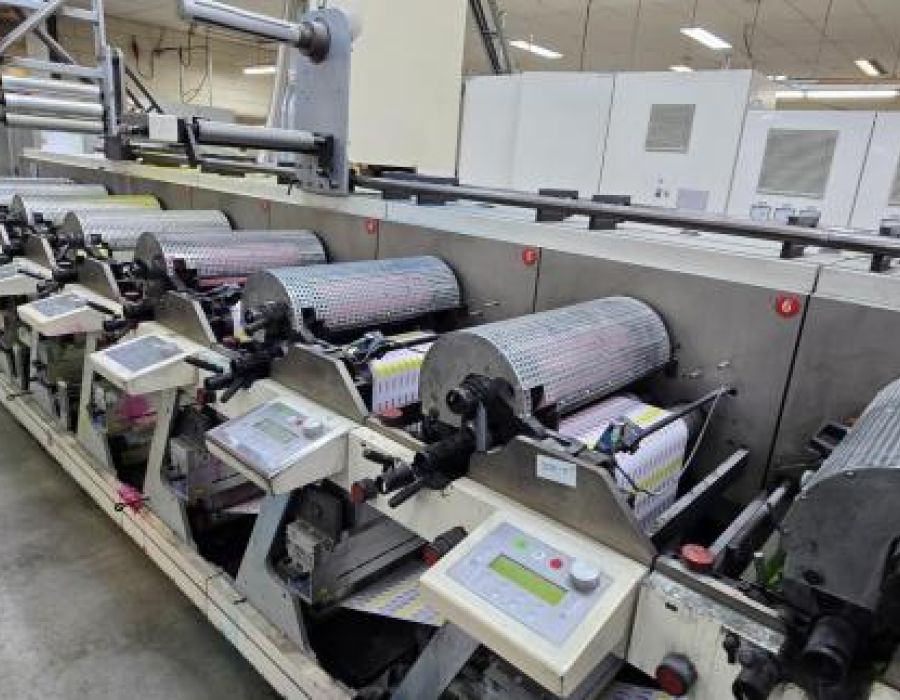

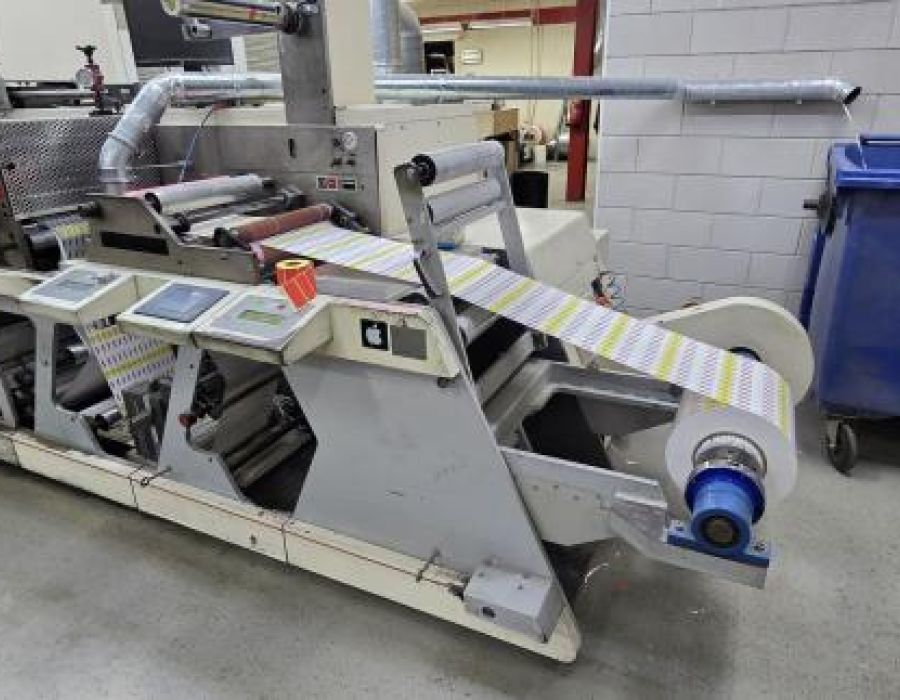

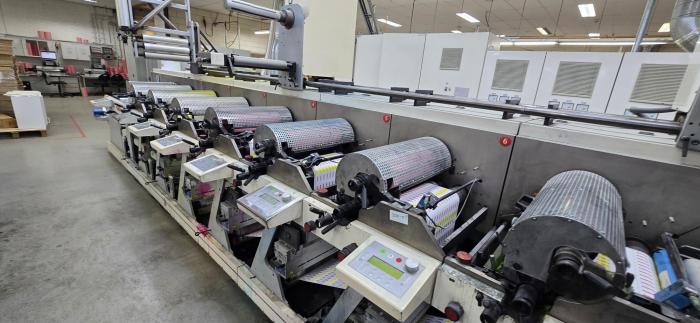

Servo Driven UV Flexo Printing Press Year: 2007 Web width: 420 mm / 16.5” Number of colours: 8 flexo printing units Technology: Servo driven UV flexo press Max. mechanical speed: approx. 175 m/min Application: Multi-substrate label and packaging production Condition: Used, offered “as is” Availability: Subject to prior sale Machine configuration: Unwind section: • Unwind with reel lift • Web guide system • Splice table • SDI web cleaner • Vetaphone corona treater Printing and web handling: • 8 x flexo printing units • Servo driven press technology • Automatic registration system • Chill rollers with chiller • 8 x IST MBS 5 UV dryers • Delam / relam unit with web turn bars Additional converting / finishing equipment: • 2 x rail mounted unwind / rewind towers for cold foil or lamination • Back slit unit • Rotary die-cutting station • Waste matrix rewind • Product rewind with lay-on roller • BST web inspection camera Technical description: The NILPETER FA-4 is a high-quality servo driven UV flexo press designed for professional label and flexible packaging production. With a web width of 420 mm, 8 flexo printing units and a maximum mechanical speed of approx. 175 m/min, the machine offers a strong production platform for a wide range of self-adhesive materials, films and multi-substrate applications. The press is equipped with important features such as corona treatment, web cleaning, automatic registration, chill rollers and IST UV drying, making it suitable for demanding print jobs with stable web control and high print quality. The delam / relam section with web turn bars allows additional flexibility for reverse-side printing or special label constructions. With the rail mounted towers for cold foil or lamination, rotary die-cutting station, waste matrix rewind and BST inspection camera, the machine offers a complete and versatile production setup for high-quality label manufacturing.
  • Manufacturer
    Nilpeter
  • Year of Manufacture
    2007
  • Web Width (mm)
    420
  • Number of Colors
    8
  • Printing Technology
    Flexo
  • Drying / Curing
    UV, IST
  • Finishing
    Delam-Relam
  • Converting
    Rotary Die Cutting
  • Automation
    Servo
  • Inspection
    Camera Inspection
  • Web Handling
    Unwinder, Rewinder, Web Guide, Web Cleaner
