PRATI NEW SATURN TE 370
PRATI NEW SATURN TE 370
Professional label finishing platform with 370 mm working width, servo technology and production speeds of up to 300 m/min.

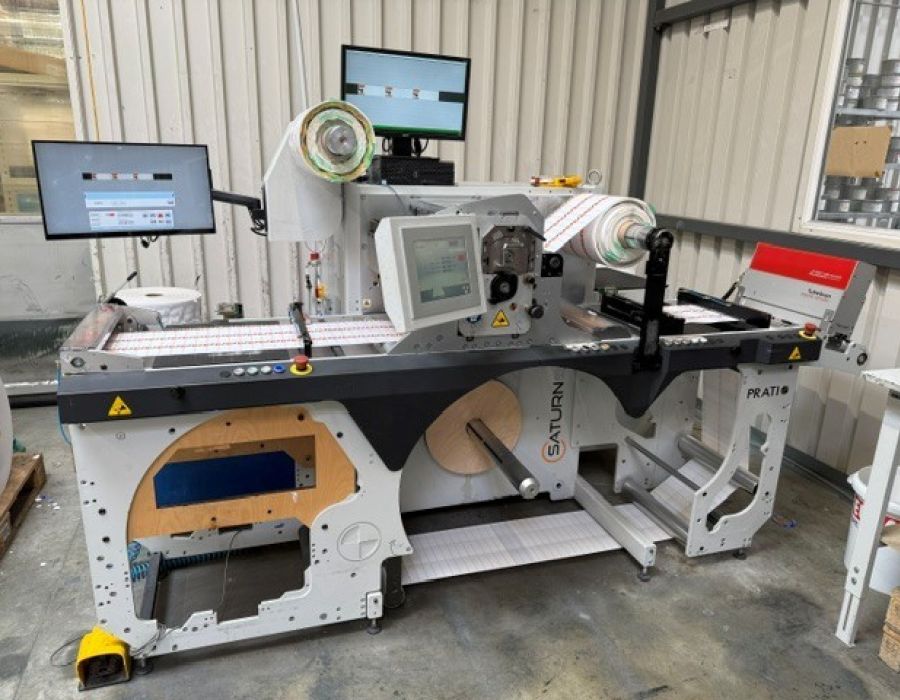

We are pleased to offer this PRATI NEW SATURN TE 370, a professional finishing machine designed for the inspection, slitting, rewinding and die-cutting of self-adhesive labels and narrow-web materials.
The SATURN series is well known in professional label production for its robust construction, precise web handling and efficient finishing capabilities.
With a maximum working width of 370 mm, servo-driven web transport and production speeds of up to 300 m/min, this machine represents an attractive solution for professional label converters looking for a versatile and proven finishing platform.
The machine is offered WITHOUT BST TubeScan inspection camera. The installed BST web guiding system is independent from the inspection camera system and remains included.
MACHINE HIGHLIGHTS
MACHINE DETAILS
| Manufacturer | PRATI |
| Model | NEW SATURN TE 370 |
| Machine type | Inspection / Slitting / Rewinding / Die-Cutting Machine |
| Working width | Max. 370 mm |
| Maximum material width | 390 mm |
| Minimum material width | 80 mm |
| Maximum speed | Up to 300 m/min depending on material |
| Electrical connection | 3 x 400 V + N / 50 Hz |
| Compressed air | 6 bar constant |
MACHINE CONFIGURATION
Servo-Controlled Unwinding System
- Pneumatic fixed unwinding shaft Ø 76 mm
- Brushless servo motor
- Maximum unwind roll diameter: 850 mm
- Automatic roll-end detection
- Automatic machine deceleration and stop
- Electronic web tension control
- Closed-loop tension control via dancer roller
- Movable splice table
- Pneumatic splice table clamps
The closed-loop tension control system ensures stable material handling even during acceleration and deceleration.
BST Web Guiding System
- Professional BST web guiding system
- Electronic web edge control
- Ultrasonic sensor
- Suitable for transparent materials
- Precise automatic web positioning
Inspection & Correction Area
The machine offers a dedicated operator area for inspection and correction of defective material.
- Inspection / correction table
- Working area length approx. 655 mm
- Forward operation
- Reverse operation
This allows the operator to identify and correct defective sections before the finished material is rewound.
Main Drive & Servo Technology
- Brushless servo drive
- Electronic speed control
- Electronic position control
- Electronic torque control
- Specially coated pull roller
- Pneumatic pressure roller
- Controlled web acceleration and deceleration
- Forward and reverse operation
The drive system is designed to minimise material slippage and maintain accurate web transport throughout production.
Professional Slitting Unit
- Removable knife shaft cassette
- Removable upper knife shaft
- Upper and lower knives
- Minimum slitting width approx. 13 mm
- Pneumatically controlled pressure roller after the slitting section
Die-Cutting Capability
The machine configuration provides a professional platform for rotary die-cutting applications.
| Maximum die-cutting material width | 450 mm |
| Standard die size | Up to 14.5″ |
| Minimum die size | 12″ |
| Maximum matrix waste roll diameter | Approx. 550 mm |
- Rotary die-cutting capability
- Front-side processing
- Reverse-side processing capability according to original specification
- Matrix waste removal
- Matrix waste rewinding
Servo-Driven Rewinding System
- Brushless servo-driven rewinder
- Electronic speed control
- Electronic position control
- Electronic torque control
- Automatic rewinding tension control
- Pneumatic interchangeable rewind shaft Ø 76 mm
- Suitable for inside winding
- Suitable for outside winding
- Maximum rewind diameter approx. 600 mm
PLC & Machine Control
- PLC control
- Touch-screen LCD display
- Production software
- Diagnostic software
- Automatic teach function
- Fast job change functionality
- Integrated machine diagnostics
- Automatic monitoring of production parameters
Label & Length Counting
- Label counting
- Length measurement
- Automatic deceleration before reaching the programmed quantity
- Leuze sensor
- Suitable for transparent materials
WHY BUY THIS PRATI NEW SATURN TE 370?
One Machine – Several Finishing Processes
The PRATI SATURN TE 370 combines several essential label finishing functions within one professional production platform:
- Inspection
- Slitting
- Rewinding
- Rotary die-cutting
- Matrix waste handling
High Productivity
With production speeds of up to 300 m/min, the SATURN TE 370 is designed for efficient industrial label finishing and high-throughput production environments.
Precise Servo Technology
Brushless servo drives, electronic tension control and precise web handling help provide stable production conditions even during acceleration, deceleration and demanding finishing jobs.
Professional BST Web Guiding
The integrated BST web edge guiding system provides accurate material positioning and is also suitable for transparent substrates.
Flexible Material Processing
The machine is suitable for a broad range of self-adhesive label materials and narrow-web substrates, including transparent materials.
Fast Job Changes
PLC control, automatic teach functions and integrated diagnostics support efficient job setup, repeat production and faster operator workflows.
Strong Alternative to New Investment
For converters looking to increase finishing capacity without investing in a completely new finishing line, this PRATI SATURN TE 370 represents an attractive and proven production solution.
KEY ADVANTAGES
- ★★★★☆ Professional label finishing platform
- 370 mm working width
- Maximum material width 390 mm
- Production speeds up to 300 m/min
- Servo-controlled unwinding and rewinding
- Closed-loop web tension control
- Professional BST web guiding system
- Slitting and rotary die-cutting capability
- Matrix waste rewinding
- Forward and reverse operation
- PLC and touch-screen control
- Suitable for transparent substrates
WHY WORK WITH FGT GRAPHIC MACHINERY?
Buying a used label finishing machine is not simply about purchasing equipment. It is about understanding the real configuration, the production capabilities and exactly what is included in the scope of supply.
- Specialist in used label printing and converting machinery
- Many years of experience in the international label industry
- Detailed knowledge of inspection, slitting, rewinding and converting technologies
- Direct contact with professional label printers and machine owners
- Transparent technical machine descriptions
- Clear identification of included and excluded equipment
- Machine inspections and production demonstrations by arrangement
- Support during commercial and technical coordination
- International experience with dismantling, loading, transport and export processes
- One professional contact throughout the complete transaction
FGT Graphic Machinery
…our passion for used Labelpresses!
The machine is offered WITHOUT the BST Nyquist / TubeScan Digital Strobe inspection camera.
The installed BST web edge guiding system is independent from the camera inspection system and is included in the machine specification.
Professional Inspection • Slitting • Rewinding • Die-Cutting
