FGT 27-129

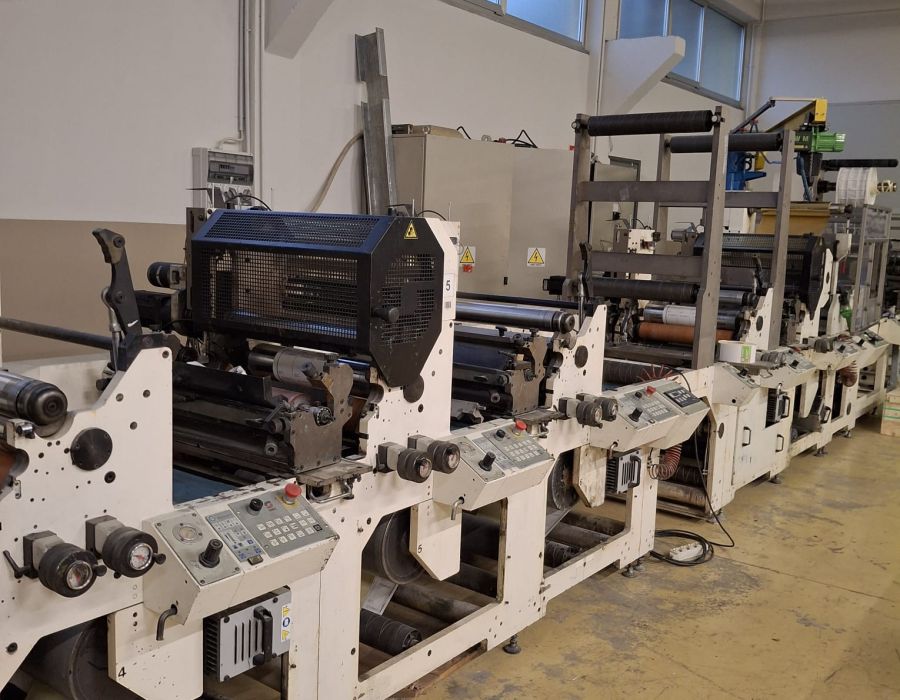

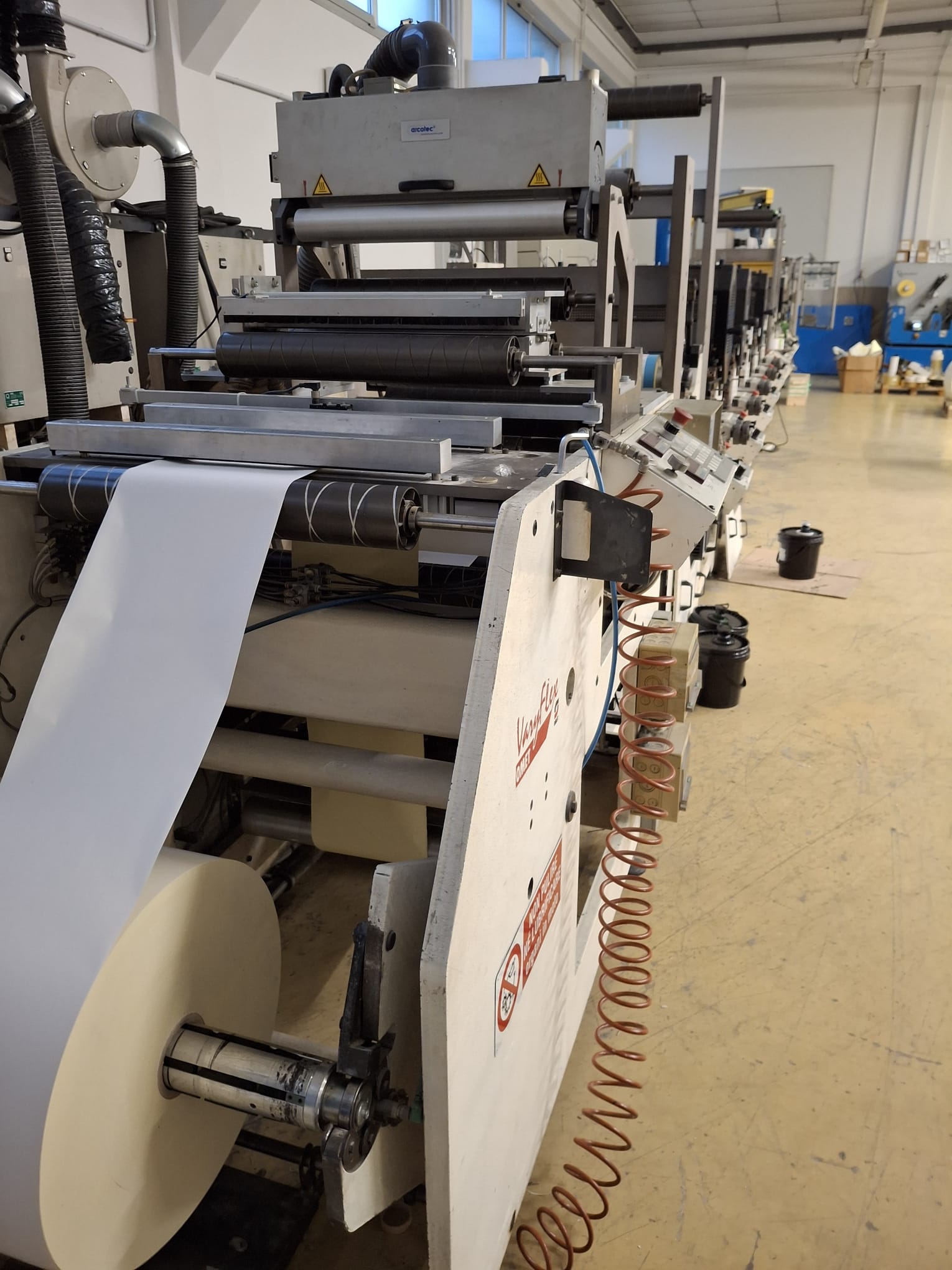

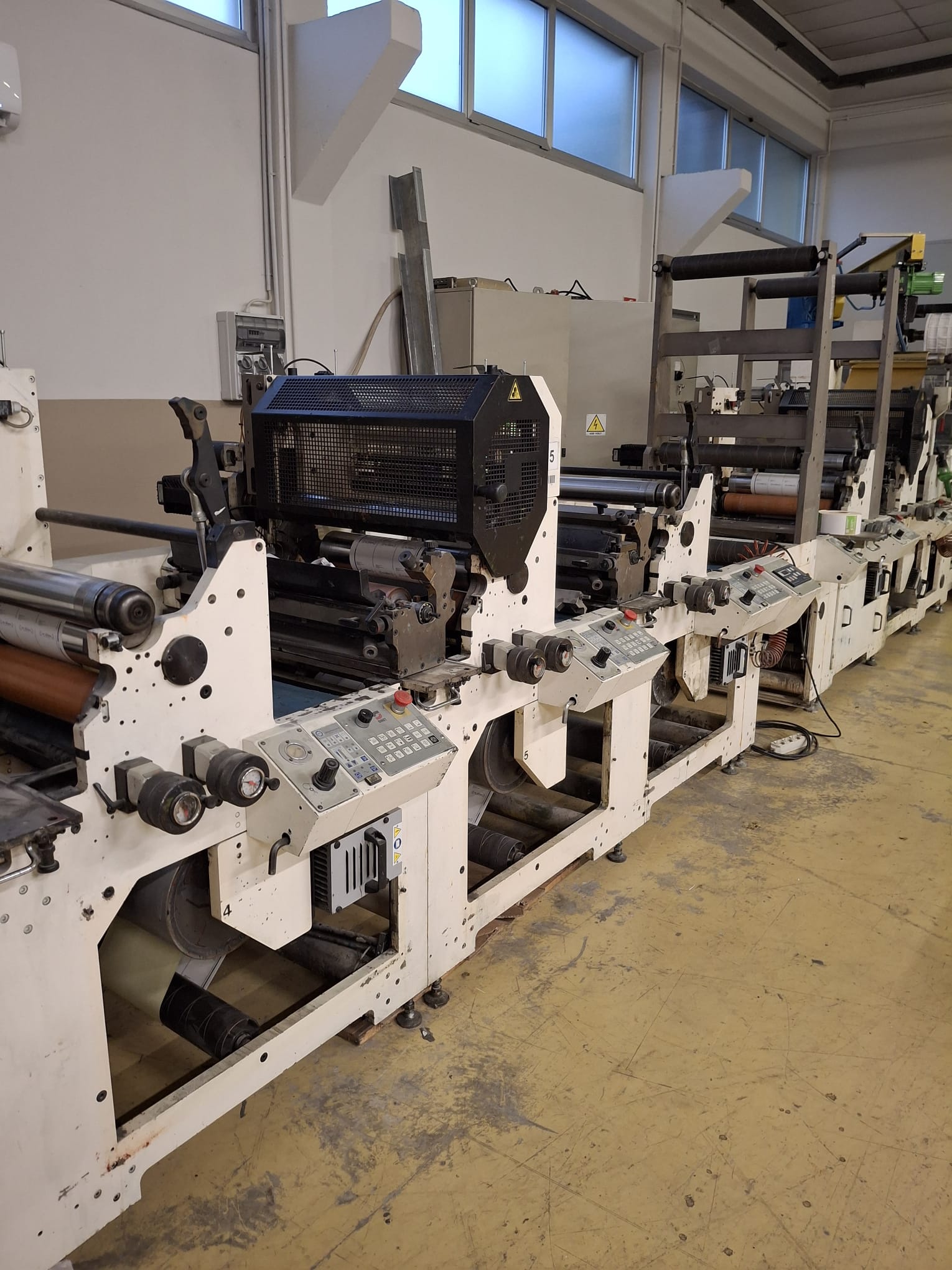

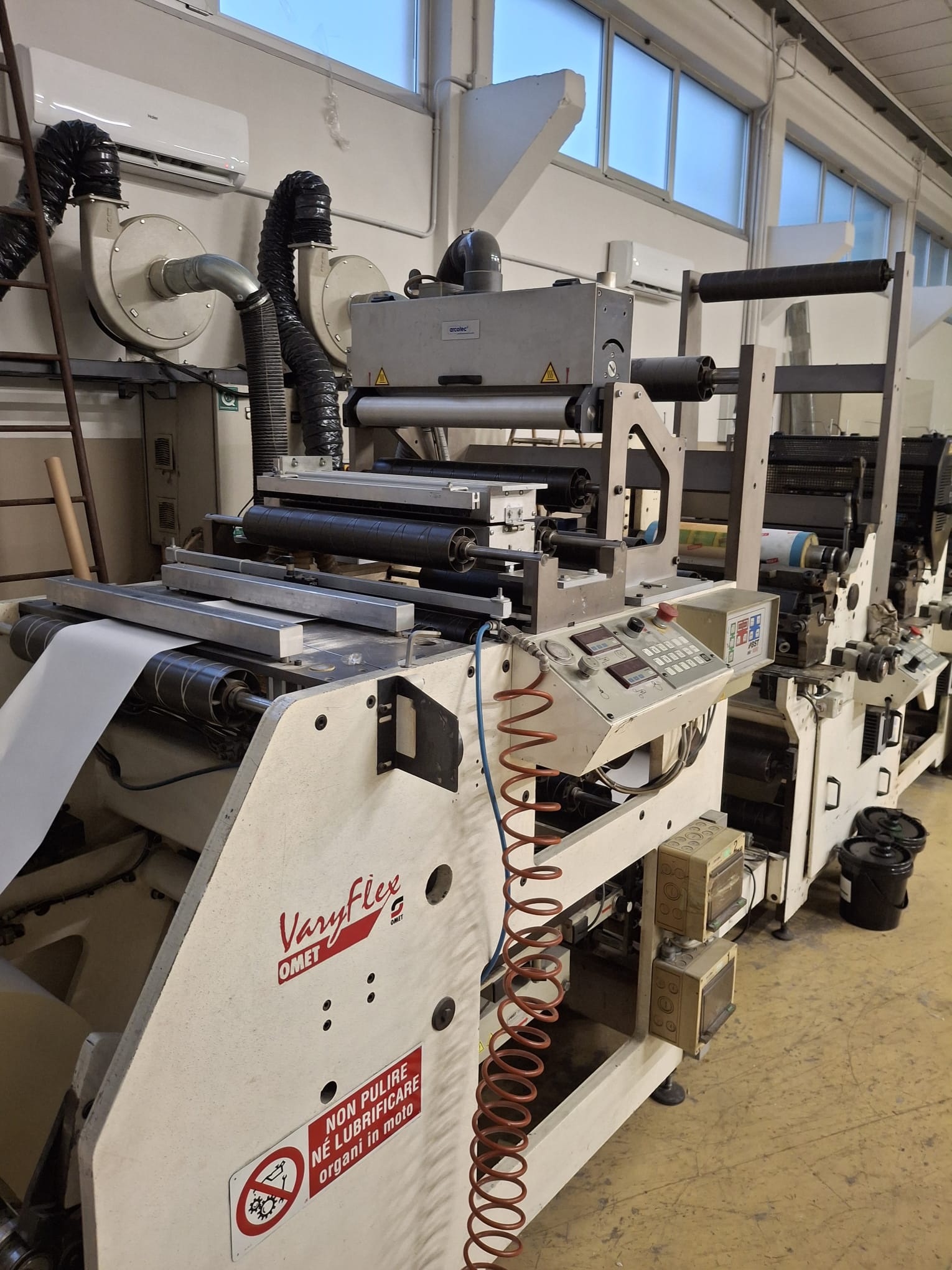

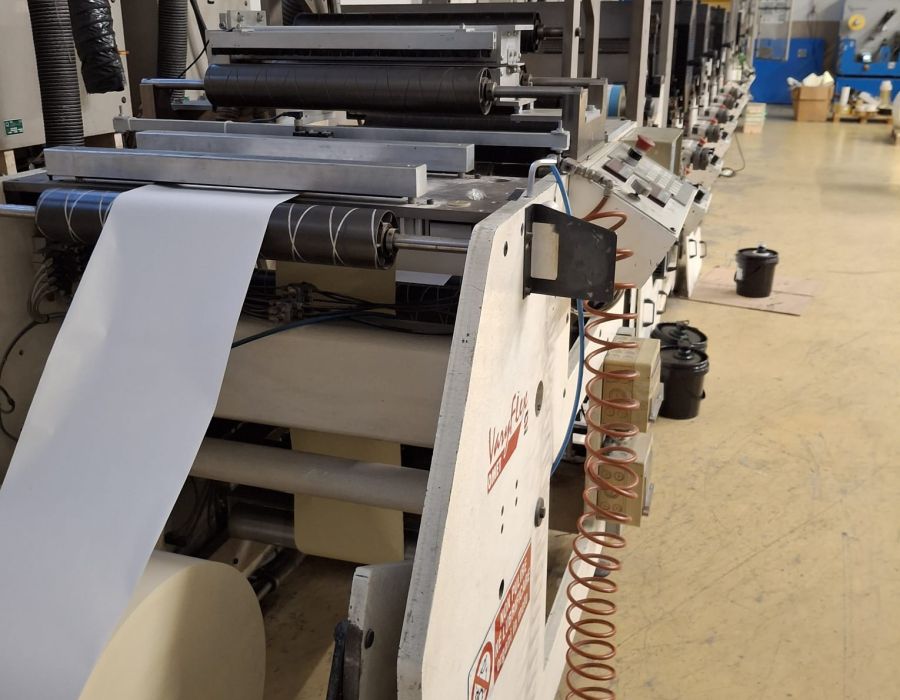

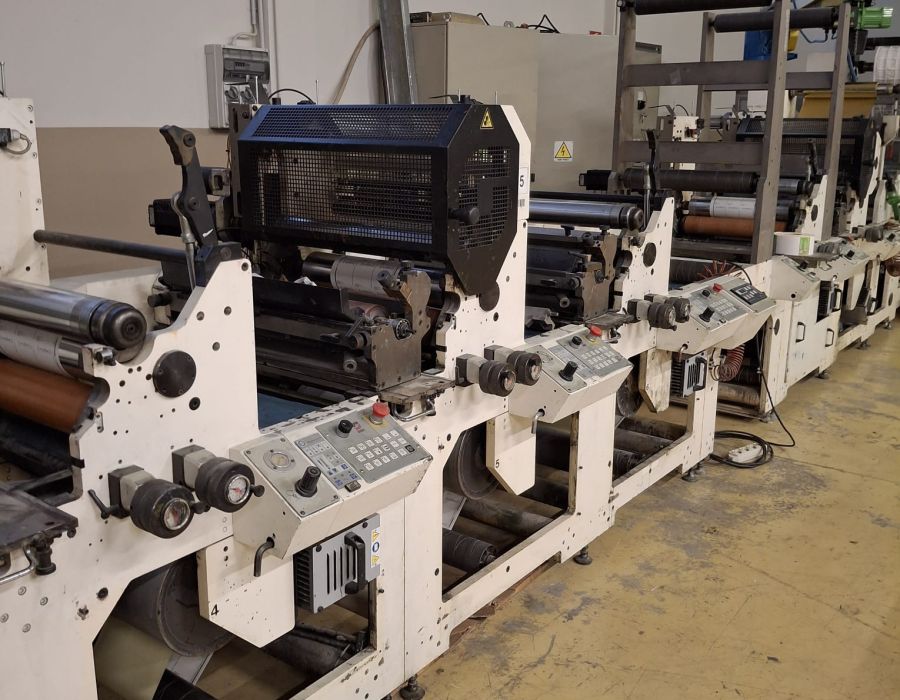

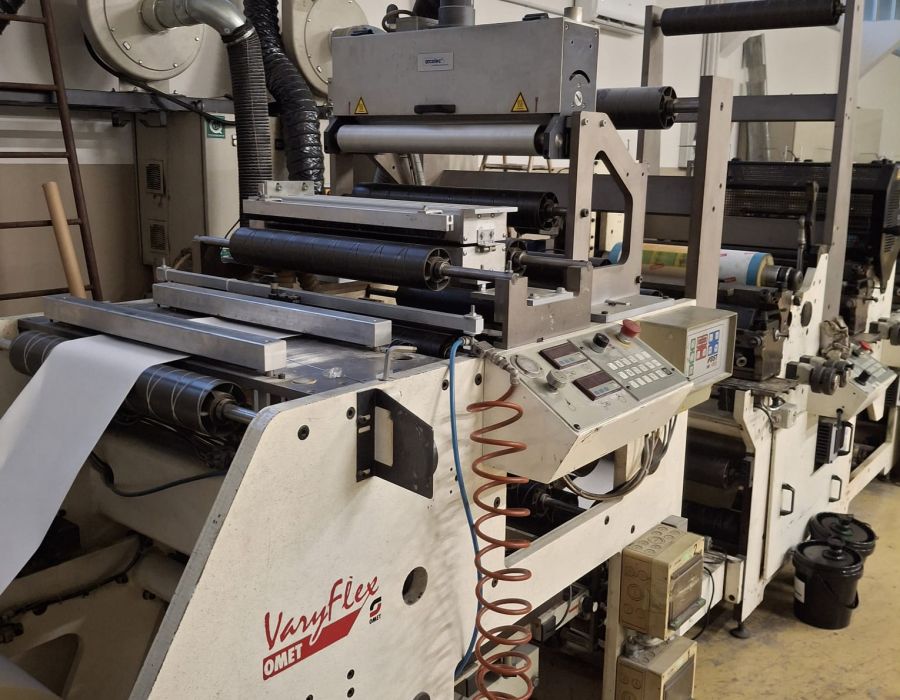

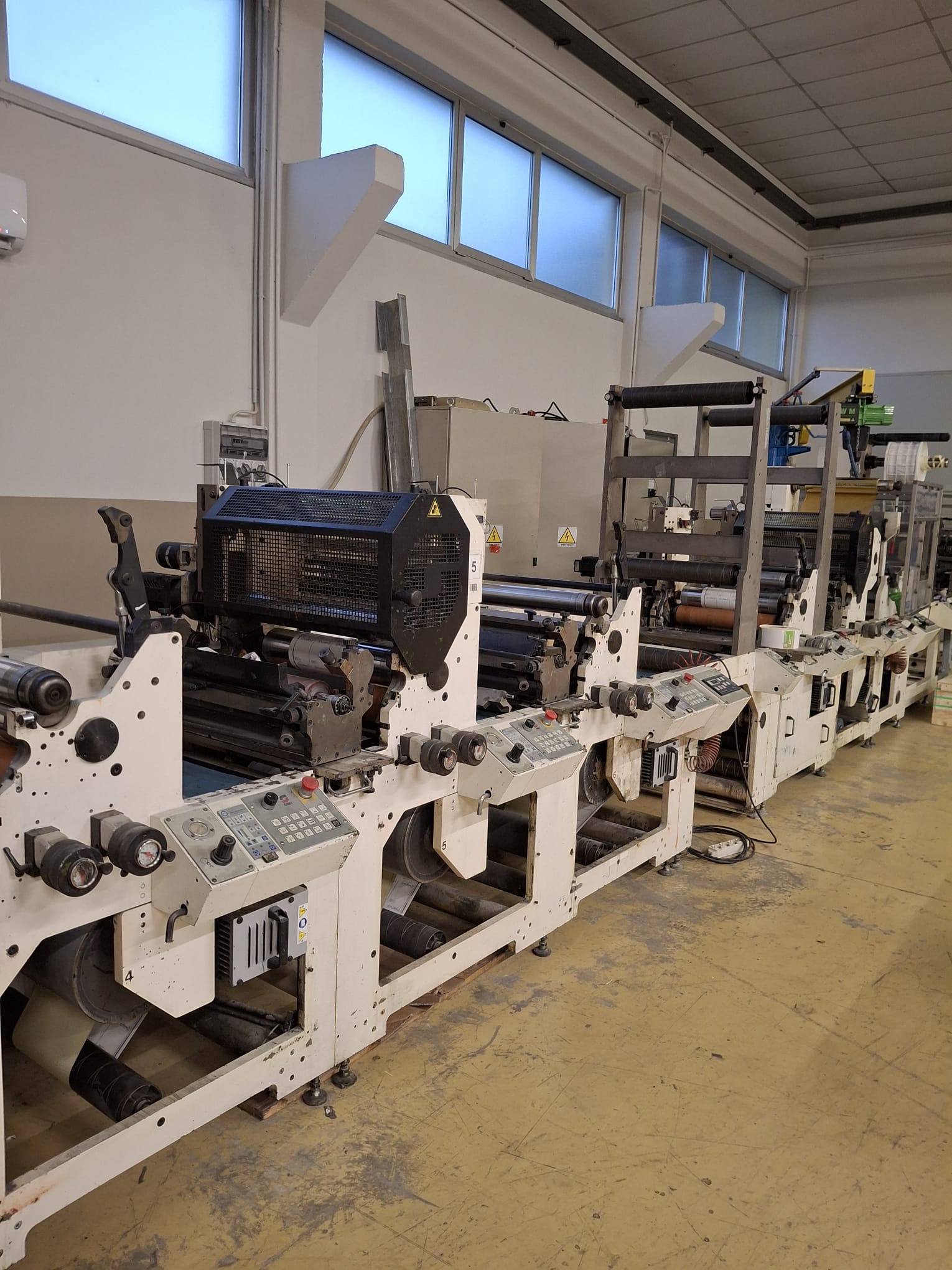

OMET Varyflex 520

Year of manufacture: 2002 Web width: 520 mm Printing process: Servo-driven flexo (sleeve technology) Condition: Used – good working condition Location: Europe Machine Configuration

8 x flexo printing units (servo-driven, sleeve system) • Drying system: 7 x UV LED + 1 x conventional UV • Water-based ink compatible • 2 x die-cutting stations • 1 x additional die-cutting unit for sheet-off system • Sheet delivery with evacuation conveyor • Cold foil unit • In-line slitting system (scissor type) • Double rewinder (dual shaft) • Web inspection camera system • Chilled impression drums • Integrated chiller unit • Ink preheating system

Equipment & Tooling

5 sets of sleeves • 12 anilox rollers • 5 magnetic cylinders

Technical Highlights & Advantages This OMET Varyflex 520 offers a very flexible configuration, making it suitable for a wide range of label applications. Key advantages:

Servo-driven sleeve system for fast job changeovers • Combination of UV LED and conventional UV drying – energy-efficient and flexible • Water-based ink capability for environmentally friendly production • Multiple die-cutting options including sheet-off capability • Cold foil integration for added value applications • Chilled drums and ink temperature control for stable print quality • Integrated inspection camera for quality control

This machine is an ideal entry-level or expansion solution for converters looking for a versatile and cost-effective production line.

Manufacturer

OMET
Web Width (mm)

520
Number of Colors

8
Printing Technology

Flexo
Drying / Curing

UV, LED-UV, Hot Air
Converting

Rotary Die Cutting, Sheeter
Automation

Register Control
Inspection

Camera Inspection, Web Monitoring
Web Handling

Unwinder, Rewinder, Web Guide, Web Cleaner
