FGT 27-246

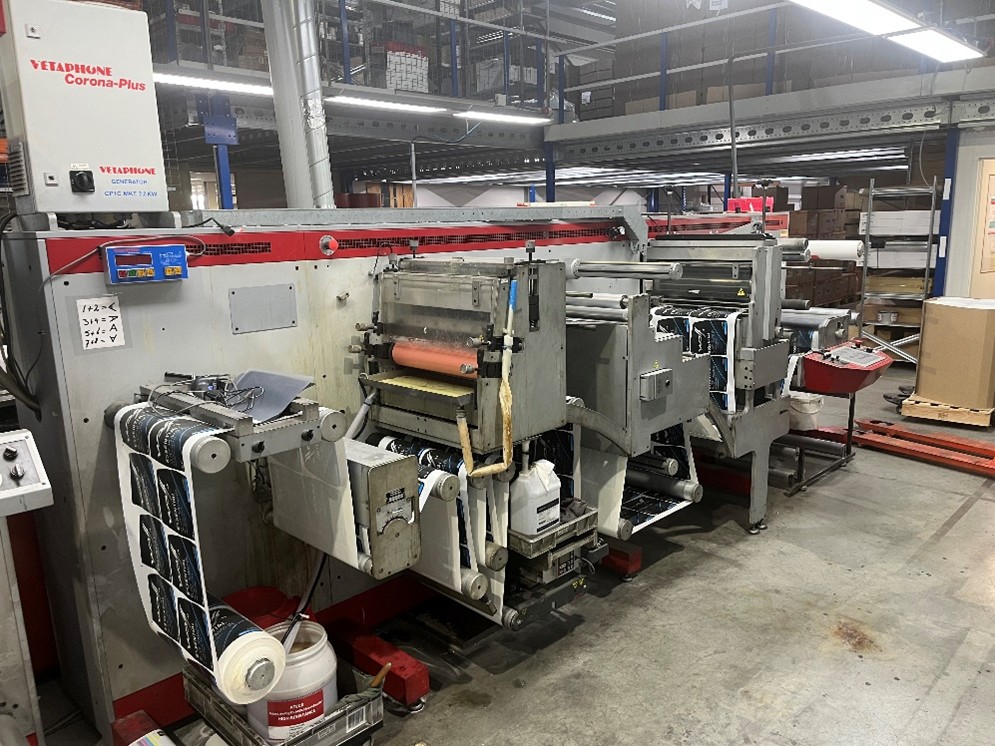

GM DC5V8-BXE Digital Converting & Finishing Line
We are pleased to present our technical and commercial offer for a GM DC5V8-BXE Digital Converting & Finishing Line, manufactured in 2013.
This machine represents a highly versatile and robust finishing solution, ideal for digital label production
in combination with platforms such as Xeikon, HP Indigo, Durst, or Konica Minolta.
Thanks to its 520 mm web width, comprehensive finishing modules and the pre-installed buffer system for Xeikon,
the line offers excellent productivity, precision and flexibility for a wide range of label and packaging applications.
Below you will find the complete technical specification and commercial terms of the offer.
Technical Specifications
General
- Model: GM DC5V8-BXE
- Year of Manufacture: 2013
- Web Width: 200 – 520 mm
- Substrate Thickness: 20 – 200 microns
- Machine Speed (Semi-Rotary): up to 55 m/min
- Unwind Unit with max. 700 mm diameter
- BST Web Guide with splice table
- Touch Screen Control Panel
- Servo-controlled Flexo Printing Unit
- UV Drying Unit
- Vetaphone Corona Unit
- Laminating Unit
- Die-Cutting Unit, die plate size 50.8 – 520.7 mm
- Magnetic Cylinder: Z 200
- Semi-Rotary Die Cutting
- Slitting Unit
- Waste Rewind up to 500 mm diameter
- 2× Rewind Stations
- Pre-installed buffer system for Xeikon digital press (Ideal for inline or near-line workflow)
- The machine is in good working condition.
- Available for inspection upon request.
Machine Request
If you have any questions or would like more information, please feel free to contact us.
