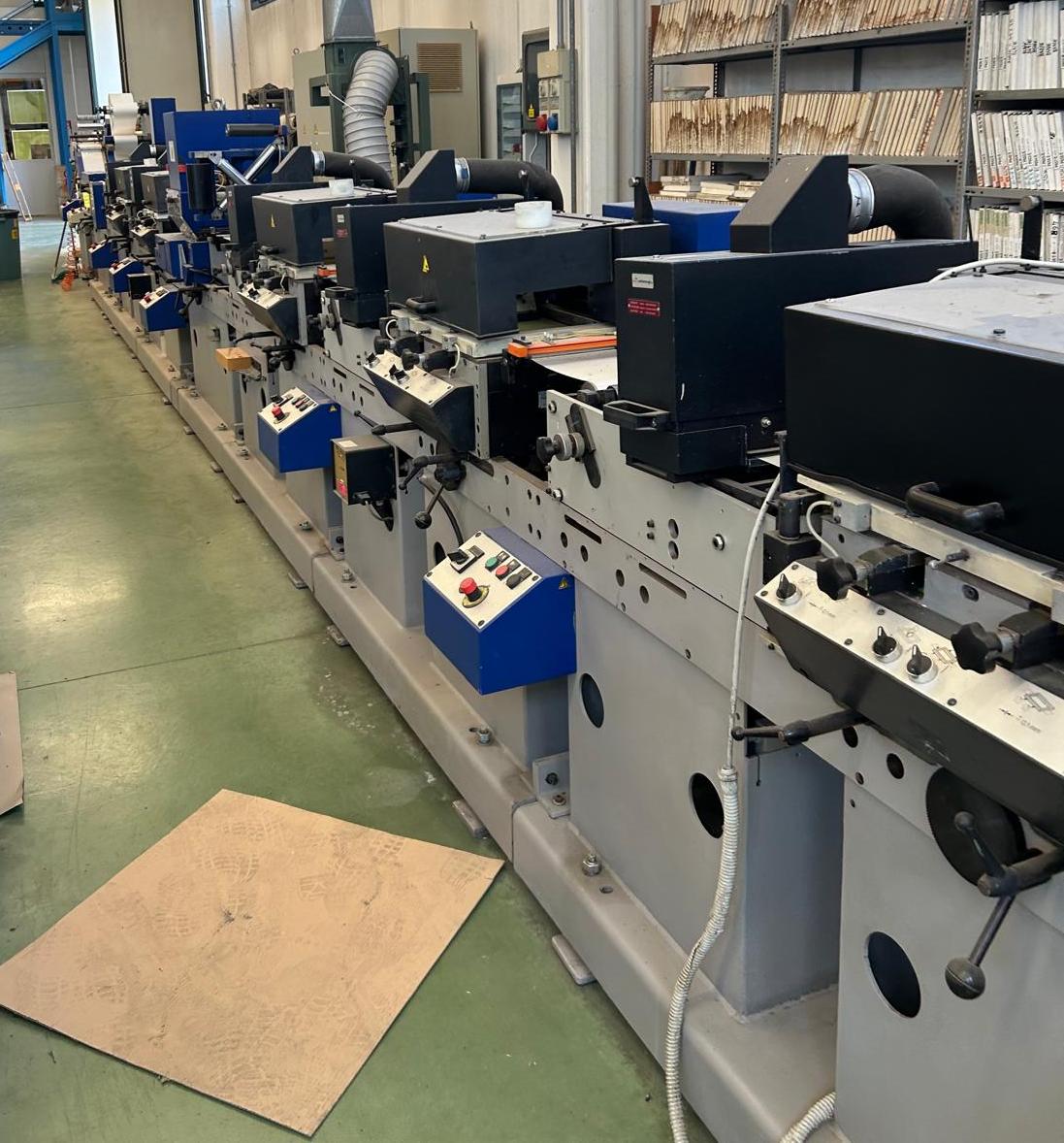

Gallus T 180 S by Graficon, a highly versatile narrow-web label printing and converting machine
equipped with five flatbed screen-printing units, hot-foil capability, lamination and flatbed die-cutting.
The machine is currently installed at the owner’s production facility and is offered for sale due to the planned acquisition of a new machine.
Additional photographs and production videos are available upon request.
Machine Summary
| Description |
Details |
| Manufacturer |
Gallus / Graficon |
| Model |
T 180 S |
| Year of manufacture |
Approx. 1992 |
| Complete overhaul |
2002 by Graficon |
| Printing process |
Flatbed screen printing |
| Number of printing units |
5 |
| Maximum web width |
200 mm |
| Maximum printing width |
180 mm |
| Current condition |
Installed in factory, described as being in good condition |
| Availability |
Subject to final confirmation |
|
|
| Delivery terms |
Loaded on truck / ex current location, subject to confirmation |
| FGT condition rating |
★★★★★★★☆☆☆ 7/10 – |
Why This Machine Is Interesting
The Gallus T 180 S is a specialised narrow-web production system designed for high-value labels and technical products requiring strong ink coverage, high opacity and tactile effects.
The five
flatbed screen-printing units allow the production of applications such as:
- High-opacity white printing
- Pharmaceutical and cosmetic labels
- Industrial and technical labels
- Security labels
- Special-effect and tactile coatings
- Metallic and decorative labels
- Premium wine and beverage labels
- Heat-resistant and durable labels
The additional hot-foil, embossing, laminating and die-cutting equipment makes this machine suitable for the complete production of finished labels in one production line.
A major advantage is the extensive overhaul carried out by Graficon in 2002, during which the machine was reportedly rebuilt to an “as-new” condition.
The printing units were also upgraded with servo drives, improving register control and production stability.
Technical Data
| Technical specification |
Details |
| Web width |
Maximum 200 mm |
| Printing width |
Maximum 180 mm |
| Printing technology |
Flatbed screen printing |
| Number of screen-printing units |
5 |
| Screen-unit positions |
Positions 1, 2, 3, 5 and 6 |
| Drive system |
Servo-drive upgrade in the printing units |
| Drying system |
UV drying |
| Die-cutting system |
Flatbed die-cutting |
| Rewinding |
Main rewinder with additional second rewind shaft |
| Web control |
Web-tension control system |
| Matrix removal |
Matrix rewinder |
Machine Configuration
Basic Machine
- Unwinding unit
- Rewinding unit
- Web-tension control
- Matrix rewinder
- Main machine control panels
- Additional upgrade for a second rewind shaft
- Servo-drive upgrade in the printing units
Web Cleaning
- Teknek web-cleaning system
The web-cleaning system removes dust and loose particles from the substrate before printing, helping to improve print quality and reduce contamination during screen printing.

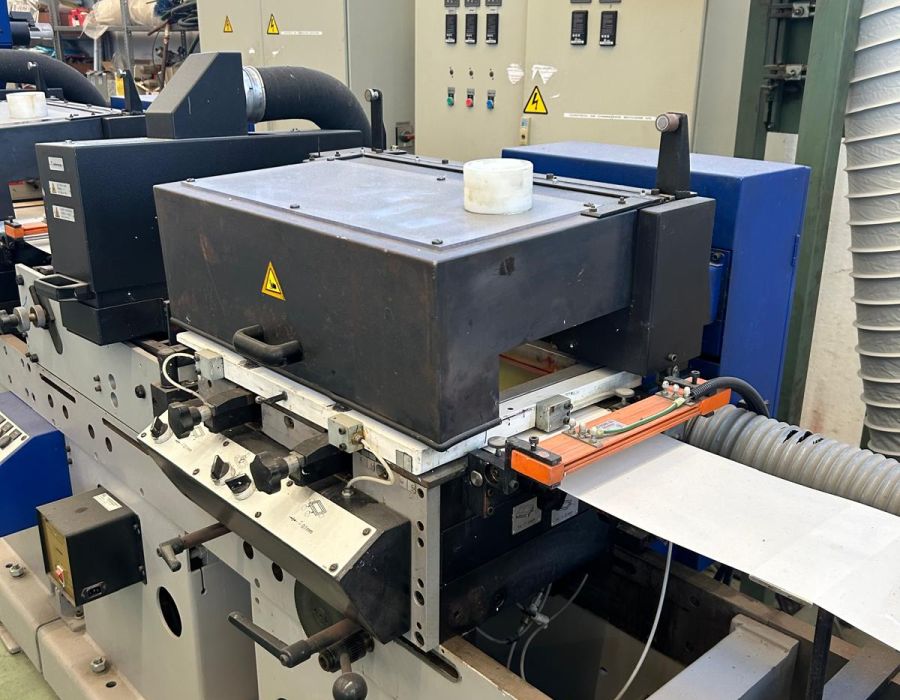

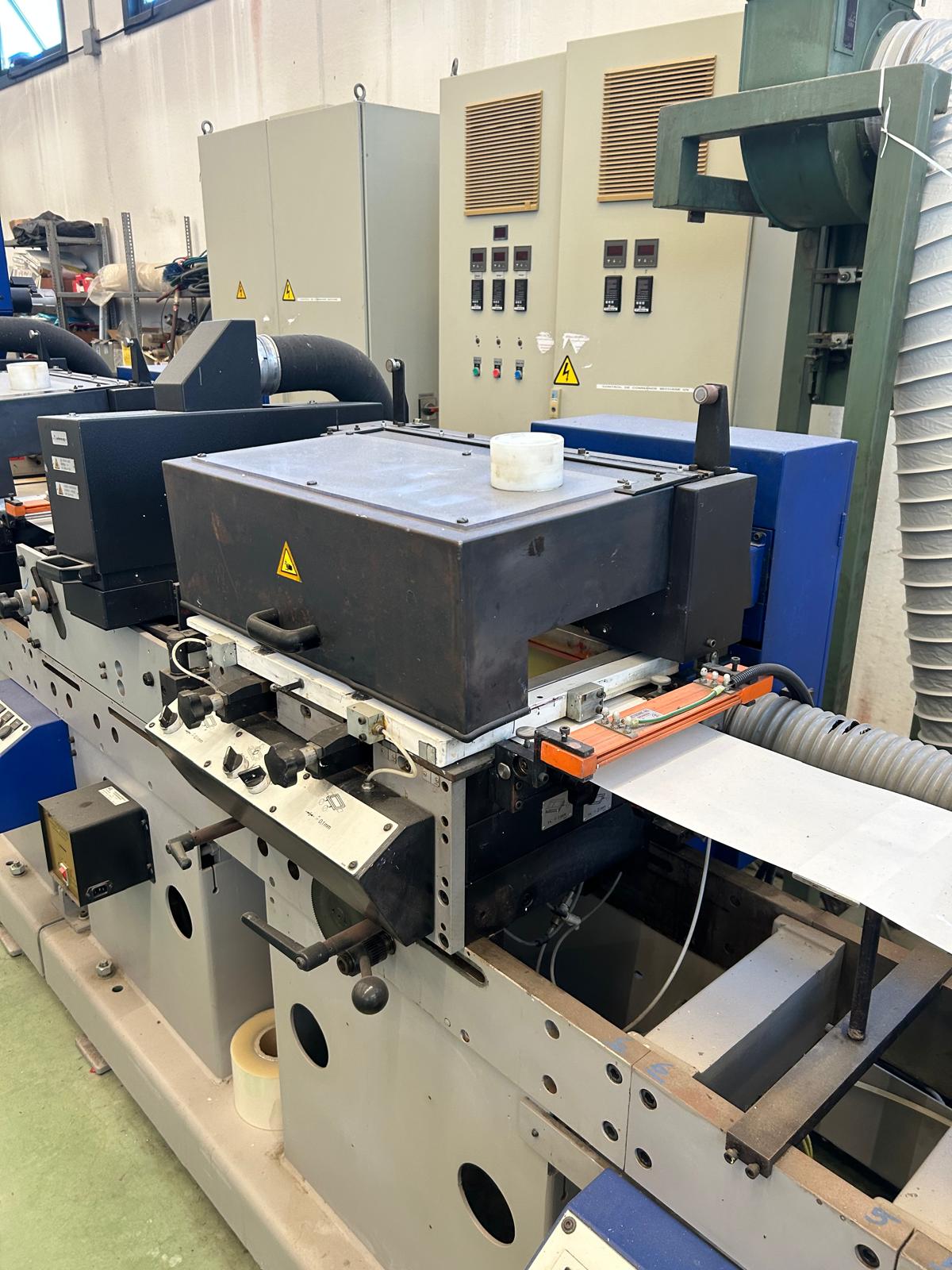

Screen-Printing Units
- Five flatbed screen-printing units
- Installed in machine positions 1, 2, 3, 5 and 6
- Servo-driven printing-unit upgrade
- Antistatic equipment for the screen-printing units
The flatbed screen-printing process provides excellent ink deposit and opacity, making the machine particularly suitable for opaque whites, varnishes, tactile coatings and specialty inks.
UV Drying
- Five Uviterno UV dryers
- ARC lamp technology
- Air-cooled UV system
- One UV dryer allocated to each screen-printing unit

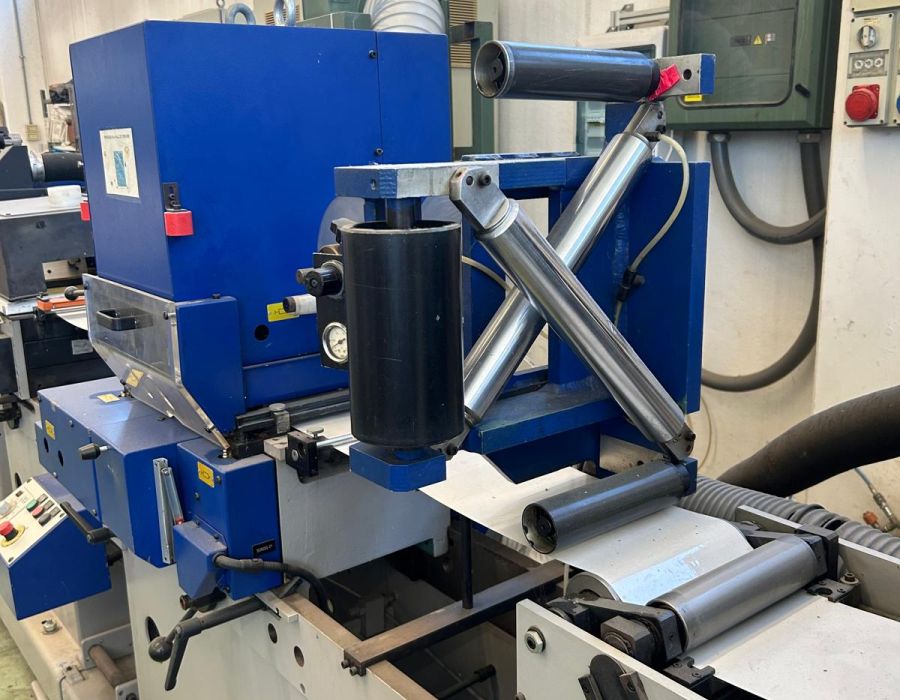

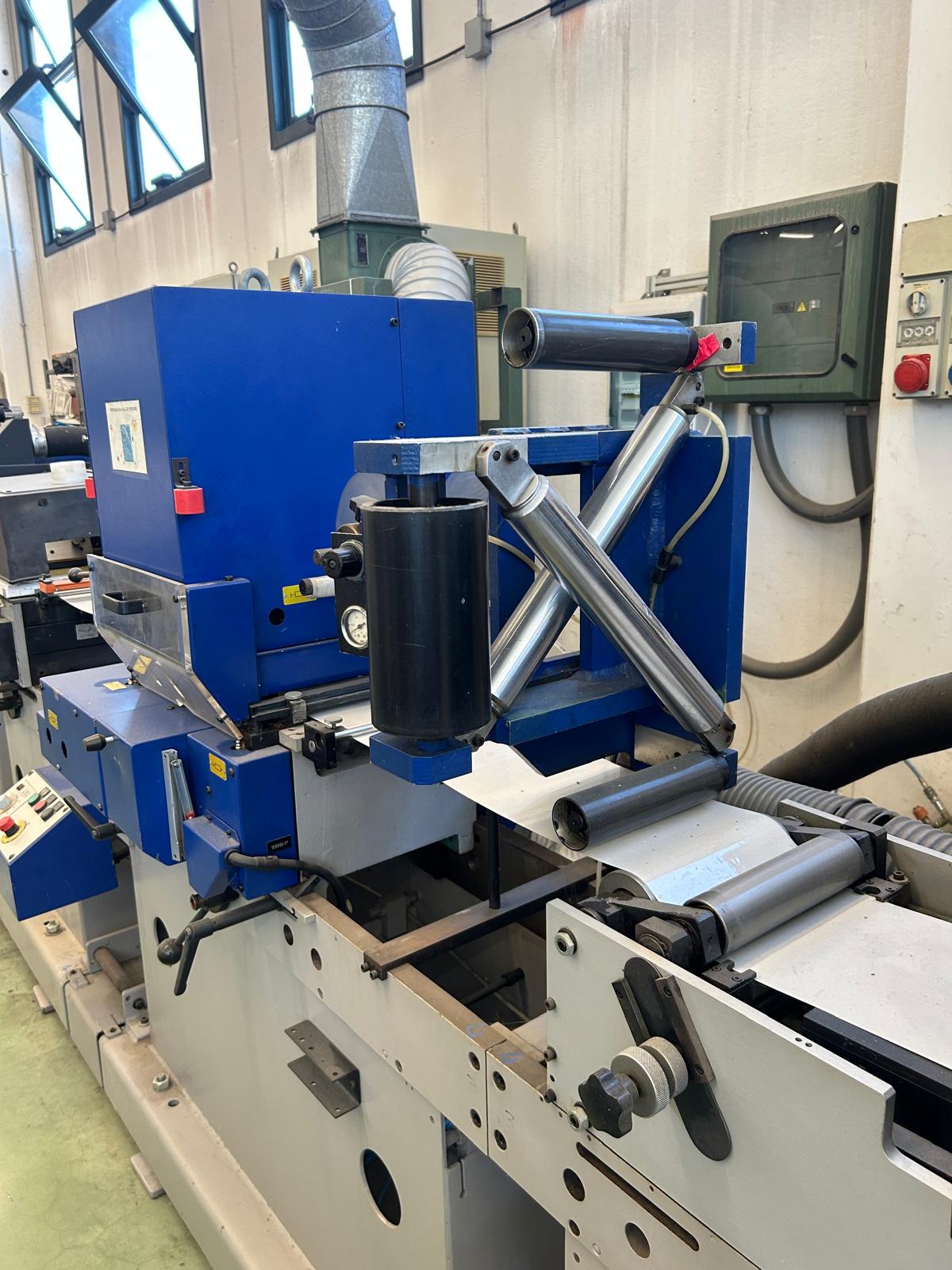

Turn-Bar System
- One turn-bar unit
- Installed after printing unit number 3
The turn-bar allows reverse-side printing or further processing of the opposite side of the web.

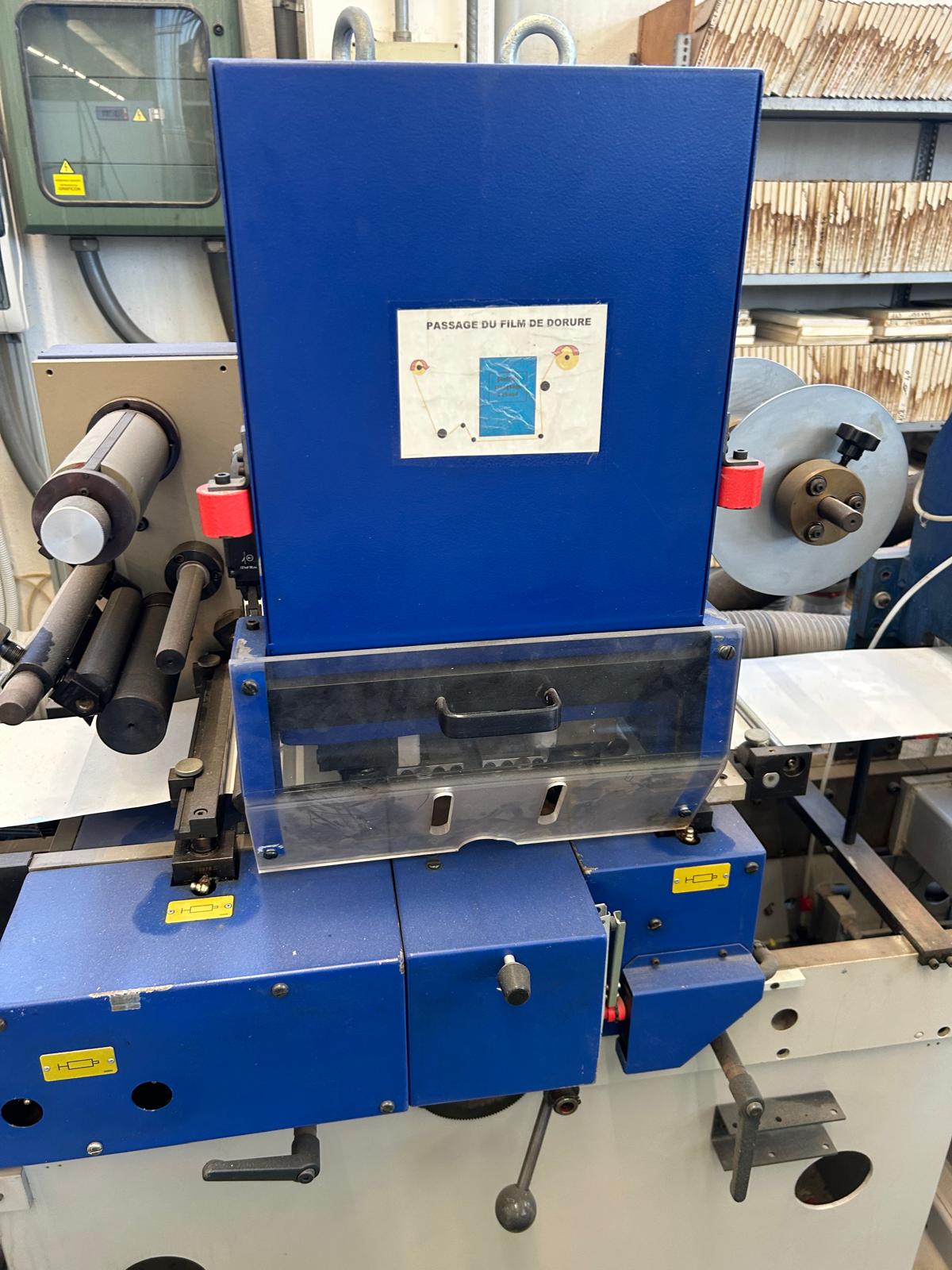

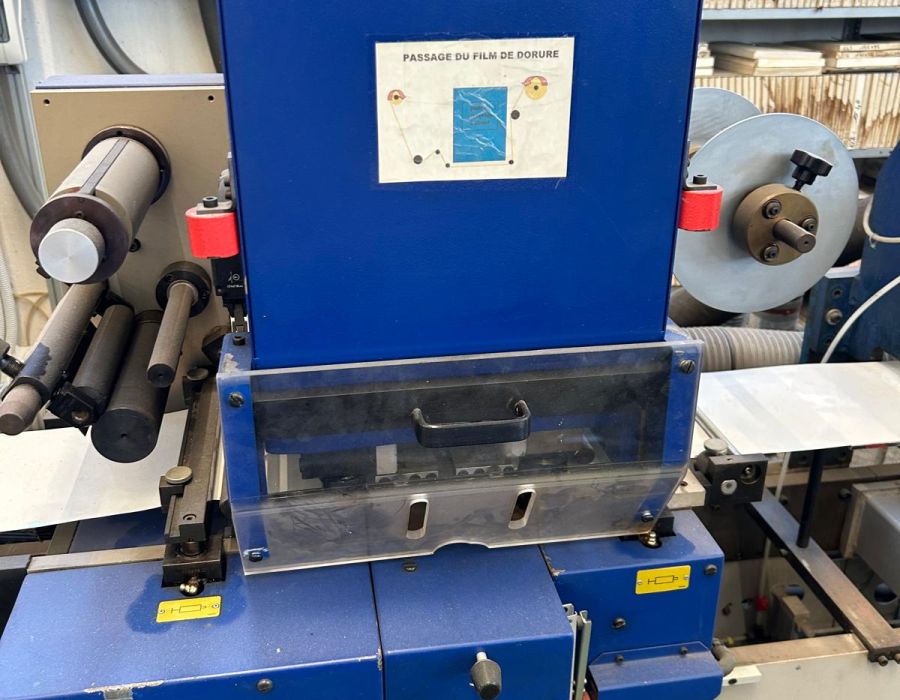

Hot-Foil / Embossing / Die-Cutting Unit
- One multifunctional unit installed in position 4
- Suitable for:
- Hot-foil stamping
- Embossing
- Flatbed die-cutting, depending on tooling and configuration
This unit enables the application of metallic foils, decorative effects and embossed structures, adding considerable value to premium-label applications.
Laminating Unit
- Laminating unit for self-wound laminates
- Suitable for adhesive lamination
The laminating equipment can be used for surface protection, decorative film application or multilayer label constructions.
Flatbed Die-Cutting Unit
- One flatbed die-cutting station
- Equipped with diagonal impression roller
The diagonal impression roller supports an even cutting pressure across the web and is suitable for precise finishing of pressure-sensitive label materials.
Antistatic Equipment
- Antistatic bar kit
- Ionisation system for the screen-printing units
The antistatic system reduces electrostatic charging of the web and supports more stable production, especially when processing filmic substrates.
Current Machine Status
The machine is currently located in the owner’s factory and is described as being in good overall condition.
According to the available information, it was fully overhauled by Graficon in 2002 and upgraded with servo drives in the printing units.
A physical inspection and production test are strongly recommended before purchase. The final operational condition, included tooling and availability of accessories must be verified during the inspection.
Further photographs and video material can be provided via WhatsApp.
