GALLUS ECS 340 – 12 color
GALLUS ECS 340
High-End Multi-Process Label Printing & Converting Press
12 Flexo Units · 3 Rotary Screen Units · LED Upgrade 2023 · Cold Foil ·
Lamination · Rotary Die-Cutting
WHY BUY THIS MACHINE?
This GALLUS ECS 340 is far from a standard configuration. Its extensive multi-process setup allows sophisticated premium labels to be printed, decorated and converted in a single production workflow.
Exceptional Printing Capacity
12 Gallus S10 flexographic printing units provide outstanding flexibility for process colours, spot colours, whites, varnishes, primers and special coatings.
Premium Screen Printing
Three rotary screen units enable opaque whites, tactile varnishes, high-build applications and sophisticated decorative effects.
Major LED Upgrade
Converted to LED technology in 2023 and prepared for up to 12 LED positions – a significant advantage compared with standard ECS 340 configurations.
Inline Embellishment
Integrated cold foil and lamination enable metallic, decorative and protective applications without requiring separate offline finishing.
Professional Die-Cutting
Top-load rotary die-cutting station with WINK SmartGap provides accurate gap adjustment for demanding self-adhesive materials.
Premium Production Platform
Ideal for high-value labels in cosmetics, pharmaceuticals, wine & spirits and other demanding premium applications.
MACHINE OVERVIEW
| Manufacturer | GALLUS |
| Model | ECS 340 |
| Year of Manufacture | 2015 |
| Web Width Class | 340 mm |
| Printing Technology | UV / LED Flexographic Printing + Rotary Screen Printing |
| Flexographic Units | 12 × Gallus S10 Flexographic Printing Units |
| Rotary Screen | 3 × Rotary Screen Printing Units |
| Multi-Process Platform | 7 Multi-Process Base Units / 14 Stations |
| Drying | 12 × GEW RHINO UV Systems with GD2 Hybrid Cooling |
| Major Upgrade | LED Conversion in 2023 – prepared for up to 12 LED positions |
MACHINE CONFIGURATION
Unwinding & Web Preparation
- Unwinding unit with reel lift
- Corona pre-treatment
- TEKNEK double-sided web cleaning system

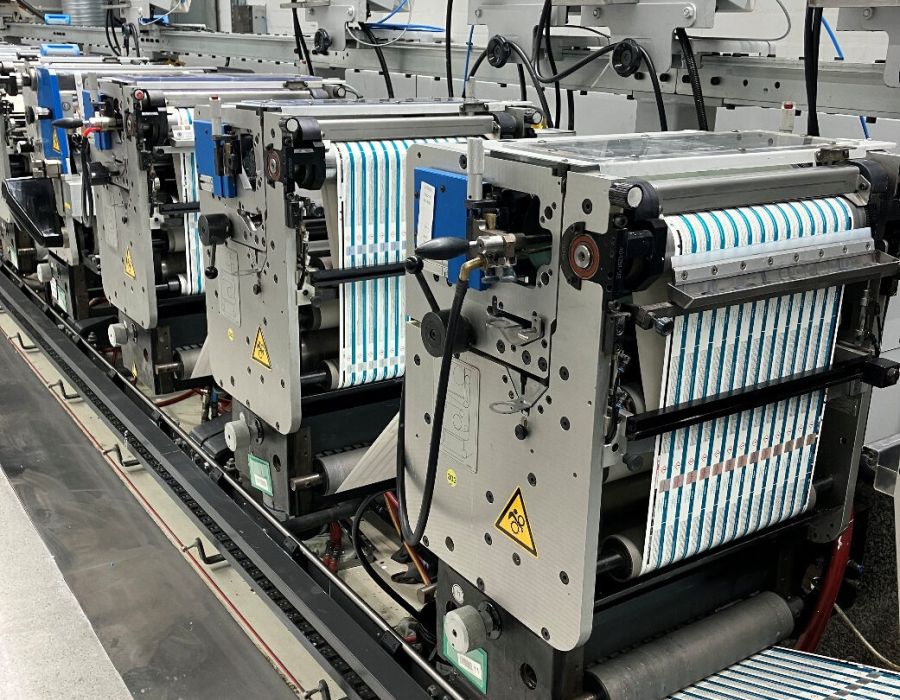

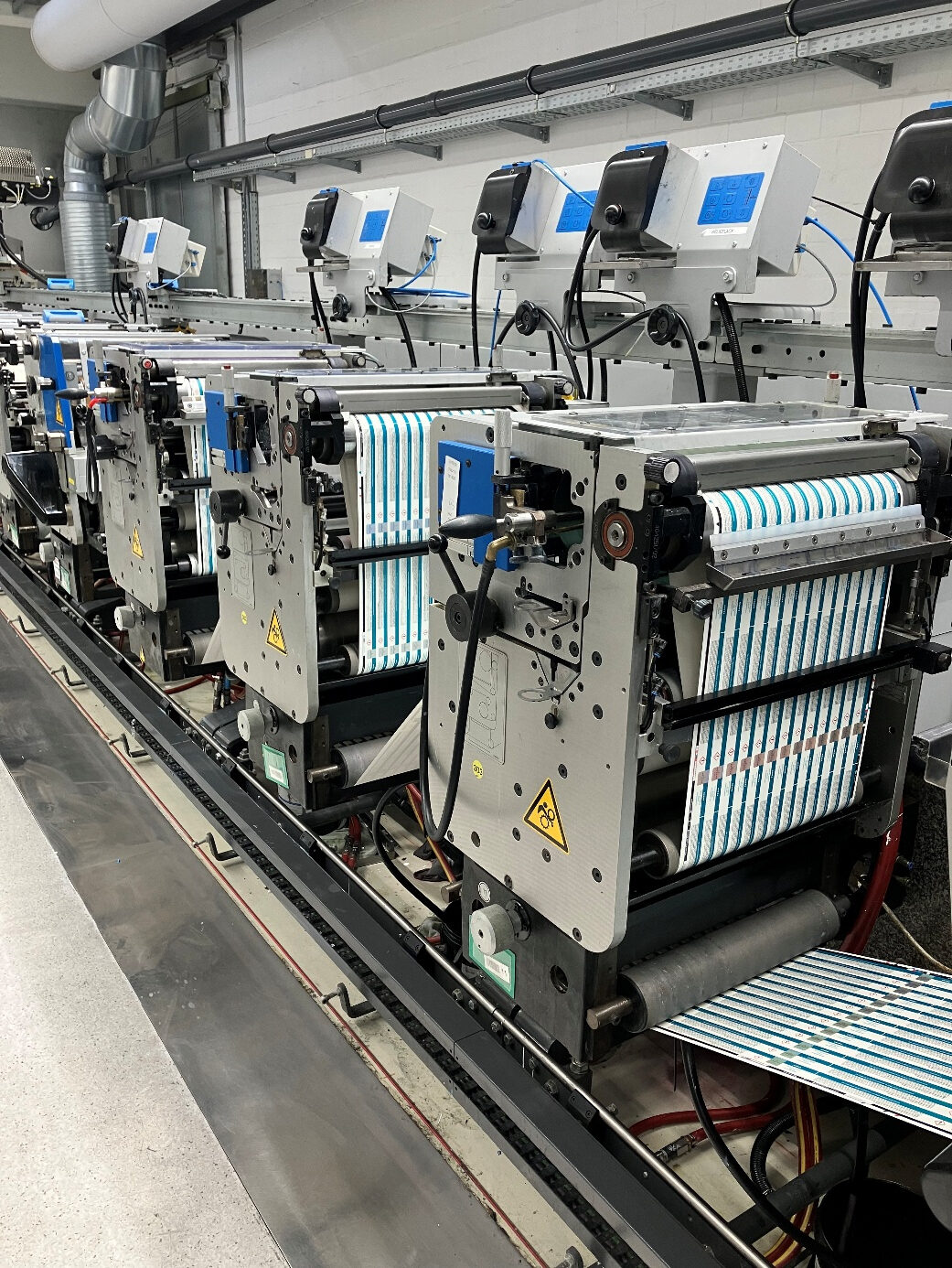

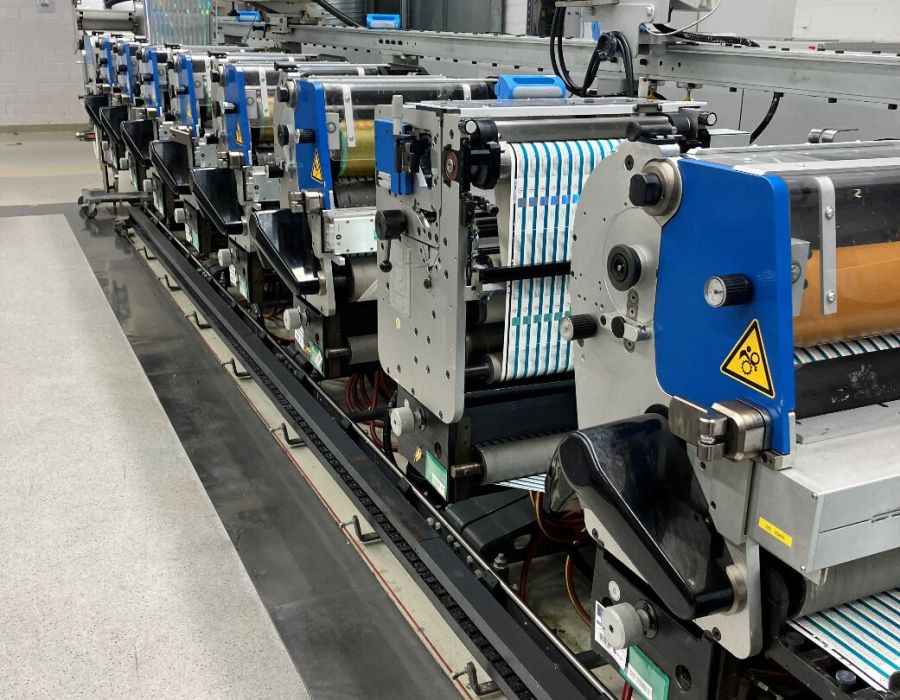

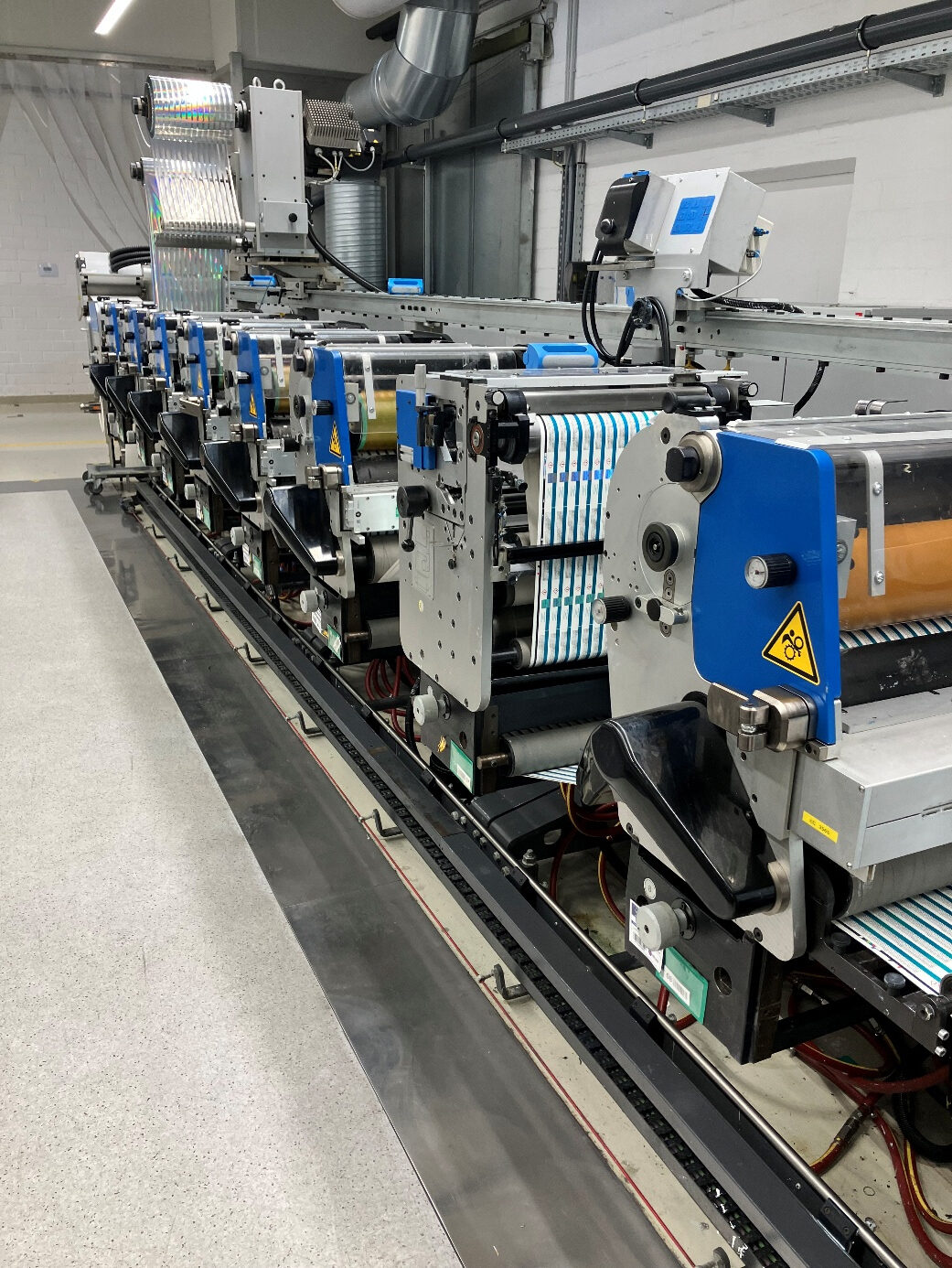

Flexographic Printing
- 12 × Gallus S10 Flexographic Printing Units
- Ink chamber
- Clamping shaft
- Professional flexographic configuration
UV / LED Drying
- 12 × GEW RHINO UV drying systems
- GD2 Hybrid Cooling
- LED conversion completed in 2023
- Prepared for up to 12 LED positions
Rotary Screen Printing
- 3 × Rotary Screen Printing Units
- Screen Integration 2
- Interface and water connections on BDS
Cold Foil & Lamination
- 1 × Cold Foil Unit
- 1 × Lamination Unit
- Premium metallic decoration
- Protective and decorative lamination

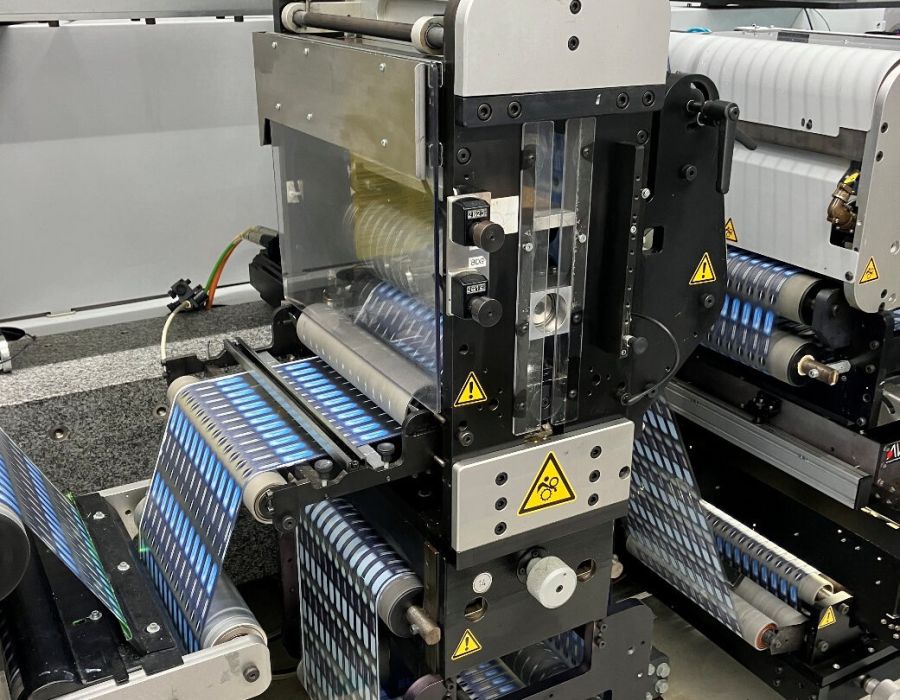

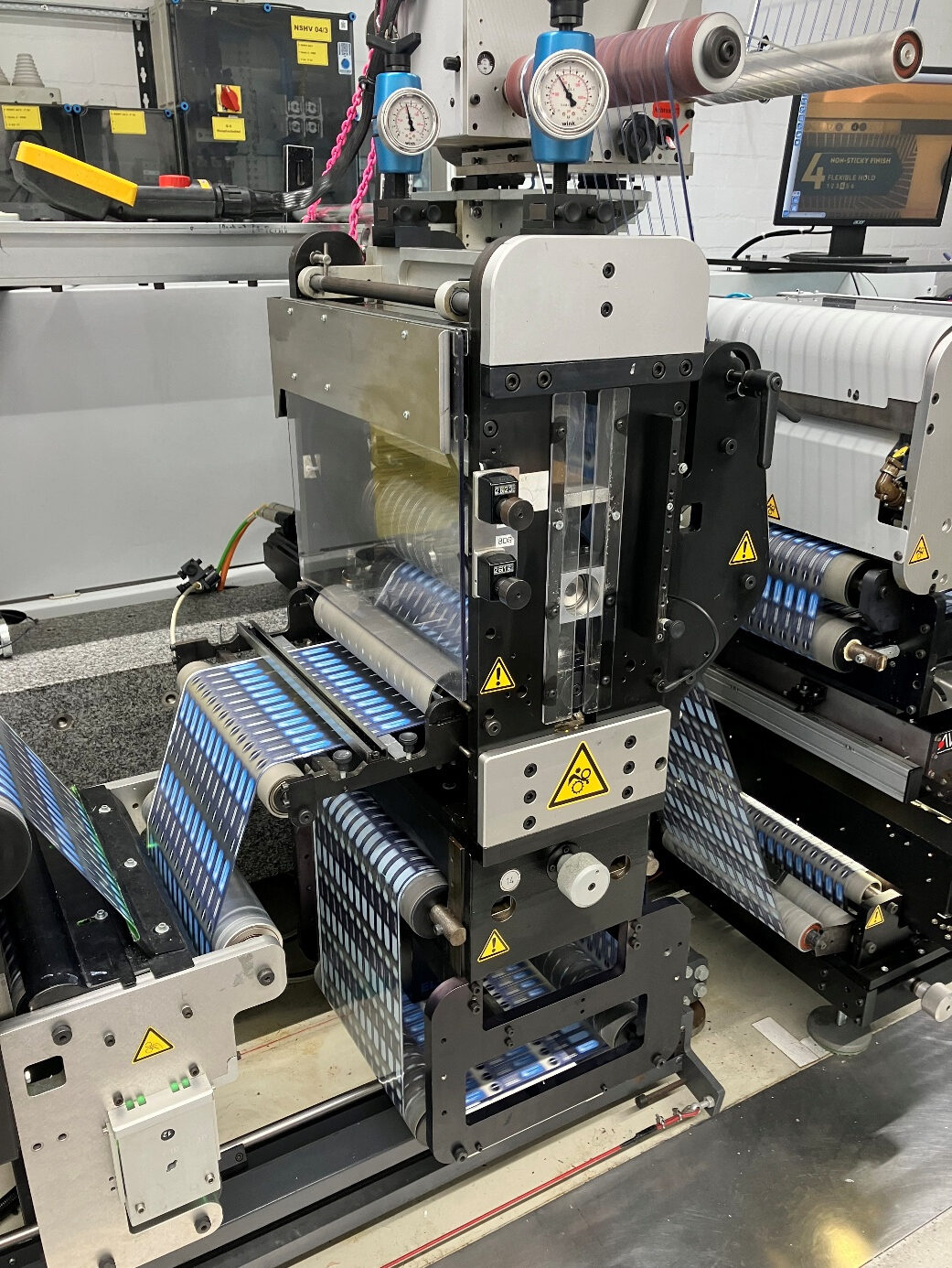

Rotary Die-Cutting
- 1 × Top-Load Die-Cutting Unit
- WINK SmartGap – manual
- Accurate gap adjustment
- Suitable for paper and film labels
Inspection & Web Control
- E+L Web Viewing System
- Continuous printed-web monitoring
- Secondary rail system
Additional Equipment
- 4 × Ink Pumps
- Varnish Flow Section
- Matrix Waste Rewinding Unit
- Rewinding unit with reel lift
TECHNICAL HIGHLIGHTS
12 × Gallus S10 Flexo
Exceptional colour flexibility for process colours, spot colours, whites, coatings, varnishes and special effects.
3 × Rotary Screen
Designed for opaque colours, tactile effects, high-build varnishes and premium decoration.
2023 LED Conversion
Modern curing technology providing lower heat input, efficient production and future-oriented capability.
TEKNEK Web Cleaning
Professional double-sided substrate cleaning for dust-sensitive and premium applications.
WINK SmartGap
Precise die-cutting gap control for paper, film, thin liners and demanding pressure-sensitive materials.
E+L Web Viewing
Professional printed-web monitoring for additional production control during operation.
TYPICAL APPLICATIONS
Especially suitable for sophisticated self-adhesive and filmic label applications where print quality, opacity, decoration and converting flexibility are essential.
ACCESSORIES & TOOLING
The exact quantity and final scope of printing and converting accessories are currently being confirmed.
A detailed tooling list will be provided separately prior to conclusion of the sale.
Optional plate heat exchanger for connection to a central cooling system may be available. Separate chiller is not included.
PRICE & COMMERCIAL TERMS
| Availability | To be confirmed |
| Inspection | Machine inspection can be coordinated by appointment |
| Video Inspection | Can be coordinated where technically possible |
| Dismantling | Can be professionally organised by FGT |
| Transport | European and worldwide transport available on request |
| Installation | Installation and recommissioning can be coordinated |
WHY WORK WITH FGT GRAPHIC MACHINERY?
Purchasing a used label press internationally involves much more than simply agreeing on the machine price. FGT can coordinate the complete project from technical evaluation to arrival at the new production site.
Interested in this GALLUS ECS 340?
Contact FGT Graphic Machinery for additional information, tooling details, photos, videos or to arrange a machine inspection.
