CMC PROFI-LINE R-320
CMC PROFI-LINE R-320
Professional 320 mm-class label finishing platform for digitally and conventionally printed self-adhesive materials.
We are pleased to offer this CMC PROFI-LINE R-320, a professional rotary die-cutting and label finishing machine designed for the converting of self-adhesive labels and narrow-web materials.
Manufactured in 2016, the machine offers a compact but highly functional configuration with servo-controlled web transport, register-controlled die-cutting, electronic web guiding and several winding positions.
The machine is especially attractive for label converters looking for a flexible roll-to-roll finishing solution for digitally or conventionally printed label material.
MACHINE HIGHLIGHTS
MACHINE DETAILS
| Manufacturer | CMC Maschinenbau GmbH |
| Model | PROFI-LINE R-320 |
| Year | 2016 |
| Machine No. | 100 586 |
| Machine type | Rotary Die-Cutting / Label Finishing Machine |
| Working width | Approx. 320 mm class |
| Maximum machine speed | Up to 90 m/min according to machine plate |
| Electrical supply | 400 V |
| Frequency | 50 Hz |
| Installed power | 20.5 kW |
| Machine weight | Approx. 1,800 kg |
| CE | Yes |
MACHINE CONFIGURATION

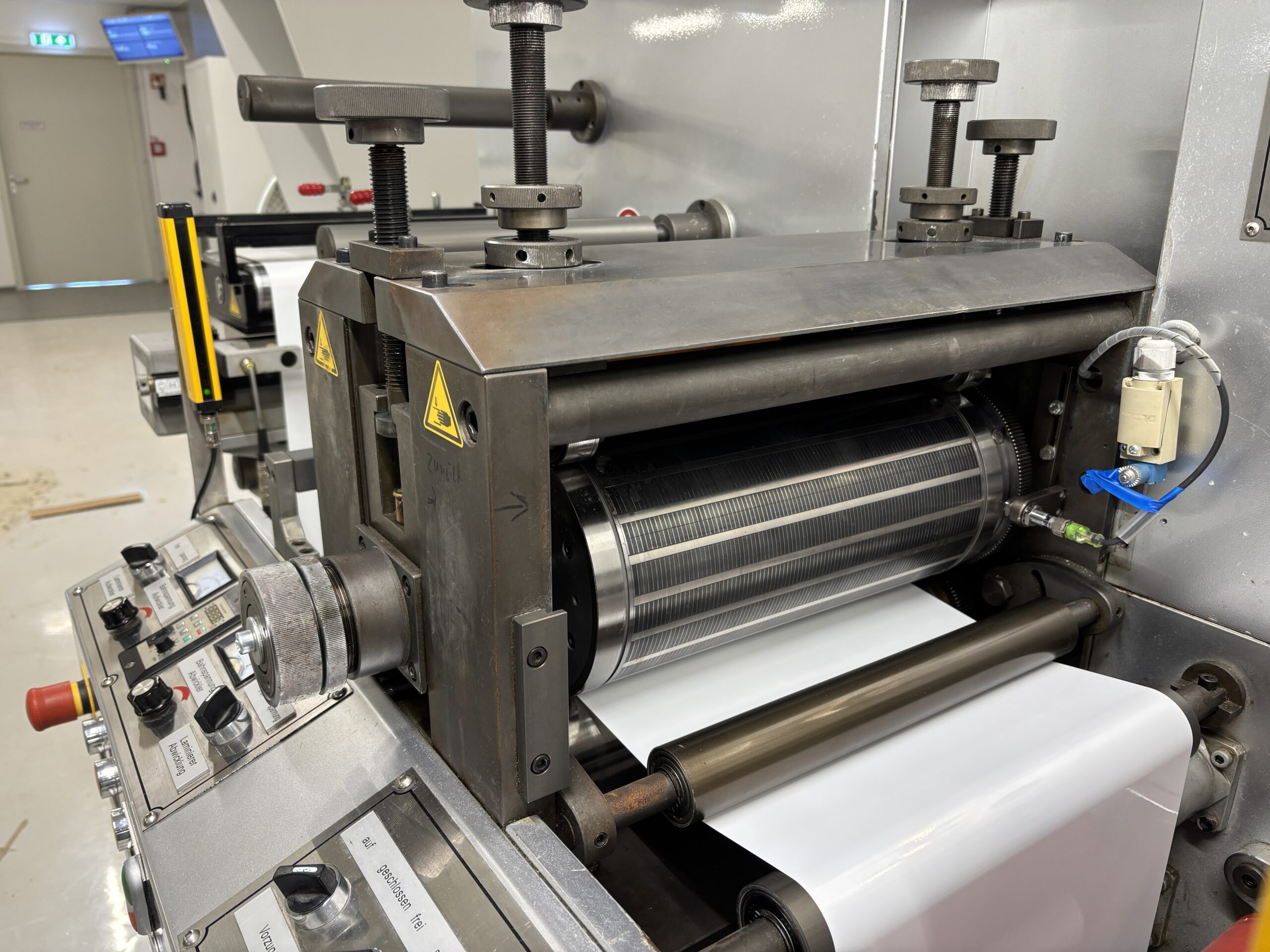

Rotary Die-Cutting System
The machine is equipped with a professional rotary die-cutting section designed for the finishing of printed self-adhesive label materials.
- Rotary die-cutting station
- Magnetic cylinder system
- Counter-pressure cylinder
- Adjustable die pressure
- Heavy-duty die-cutting frame
- Servo-controlled material transport
- Register-controlled production
- Suitable for printed label webs
- Matrix / waste separation
This configuration makes the machine particularly suitable for the finishing of digitally printed labels where accurate die-cutting registration is essential.
Register-Controlled Production
The machine is equipped for register-controlled operation, allowing the die-cutting process to follow pre-printed material.
Suitable for:
- Digital label production
- Flexographically printed labels
- Pre-printed self-adhesive materials
- Short production runs
- Medium production runs
Servo-controlled web positioning helps maintain stable and precise material transport during production.
Servo Technology
Servo-controlled drive technology provides precise handling and positioning of the web throughout the production process.
- High registration accuracy
- Stable web transport
- Precise acceleration and deceleration
- Controlled winding tension
- Improved repeatability
- Well suited for short-run digital label finishing
Professional Web Handling
- Electronic web guiding system
- Web guide sensor
- Multiple guide rollers
- Controlled material feed
- Adjustable web tension
- Pneumatic shafts
- Several rewinding and waste-winding positions
The web guiding system supports accurate material alignment before and during the die-cutting process.
Unwinding System
- Pneumatic unwind shaft
- Roll-fed material handling
- Controlled web tension
- Adjustable web path
- Material guiding system
The machine is suitable for typical self-adhesive labelstock, paper-based materials and film substrates.
Flexible Rewinding System
One of the important advantages of this CMC is its flexible winding configuration with several pneumatic winding positions.
- Finished label roll rewinding
- Matrix waste rewinding
- Different finished-roll configurations
- Roll-to-roll finishing
- Separate handling of finished material and production waste
Matrix Waste Removal
The machine is equipped for the removal of die-cutting matrix waste after label cutting.
The waste matrix can be separated from the finished label web and rewound independently, supporting efficient self-adhesive label production.
Slitting & Finishing Area
The machine includes a finishing area with adjustable components for roll conversion.
Depending on the installed tooling, possible applications include:
- Longitudinal slitting
- Multiple finished rolls
- Narrow roll production
- Conversion of wider printed webs

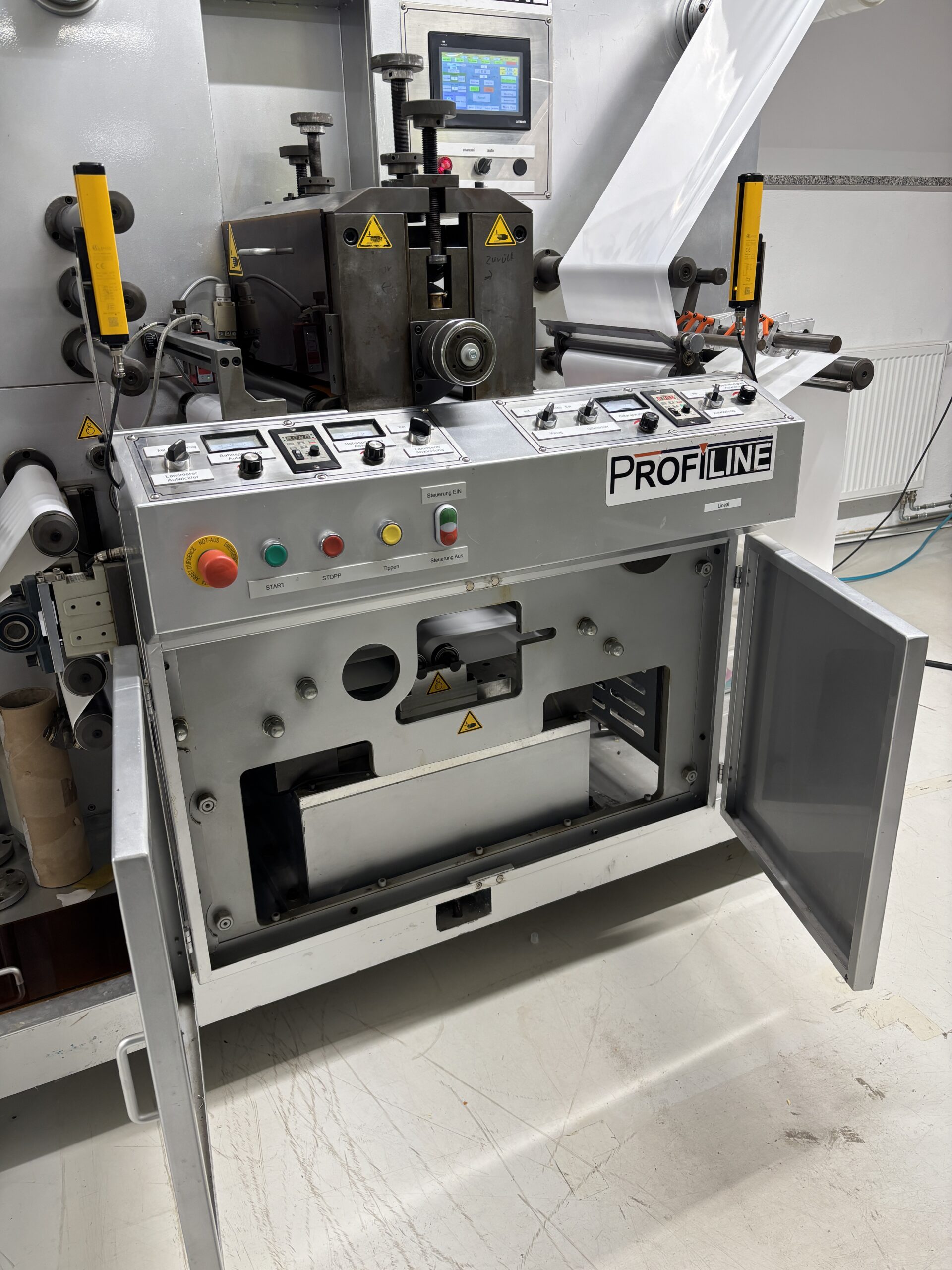

Electronic Touchscreen Control
The machine features a central electronic touchscreen control system for operator-friendly machine setup and production control.
- Machine start / stop
- Jog / inching function
- Production speed control
- Web tension settings
- Rewinding control
- Register / die-cutting functions
- Individual drive controls
- Conventional operator controls
- Emergency stop buttons
SUITABLE APPLICATIONS
- Self-adhesive labels
- Digitally printed labels
- Flexographically printed labels
- Paper labels
- Film labels
- Roll labels
- Pre-printed materials
- Short-run label production
- Medium production runs
- Register-controlled die-cutting
- Matrix stripping
- Rewinding
- Roll-to-roll converting
VISIBLE MACHINE CONFIGURATION
- CMC PROFI-LINE R-320
- Rotary die-cutting station
- Magnetic cylinder
- Counter-pressure cylinder
- Register control
- Servo-controlled web transport
- Electronic web guiding
- Pneumatic unwind shaft
- Multiple pneumatic rewind shafts
- Matrix waste rewinding
- Electronic touchscreen
- Separate operator control panel
- Web tension control
- Several guide rollers
- Safety light barriers
- Emergency stop system
- CE equipment
WHY BUY THIS CMC PROFI-LINE R-320?
Professional 320 mm Label Finishing Platform
The PROFI-LINE R-320 offers a compact professional solution for converting digitally or conventionally printed self-adhesive label rolls.
Register-Controlled Die-Cutting
Register-controlled die-cutting is especially important for digitally printed labels, where the cutting contour must follow the printed image with high accuracy.
Servo-Controlled Web Transport
Servo technology provides stable web movement, accurate positioning and repeatable production conditions throughout the converting process.
Flexible Rewinding Configuration
Several pneumatic winding positions allow finished label material and matrix waste to be handled separately and efficiently.
Ideal for Digital Label Finishing
The combination of register control, servo transport, die-cutting, matrix stripping and rewinding makes this CMC particularly interesting as a finishing partner for digital label presses.
Compact Machine Design
The machine combines essential converting processes within one relatively compact production platform, making it attractive for converters where production space is an important consideration.
Strong Alternative to New Investment
For companies looking to expand their finishing capacity without investing in a completely new machine, this 2016 CMC PROFI-LINE R-320 represents an interesting and cost-effective solution.
KEY ADVANTAGES
- ★★★★☆ Professional label finishing platform
- 2016 machine
- Approx. 320 mm working width
- Maximum speed up to 90 m/min
- Rotary die-cutting
- Magnetic cylinder system
- Register-controlled production
- Servo-controlled web transport
- Electronic web guiding
- Matrix waste removal
- Flexible rewinding configuration
- Touchscreen control
- Roll-to-roll production
- Compact footprint
- CE marked
PRICE & INCOTERM
| PRICE | On request |
| INCOTERM | To be confirmed according to machine location and final scope of supply |
| INSPECTION | Possible by prior appointment |
