BROTECH CDF PLUS 330

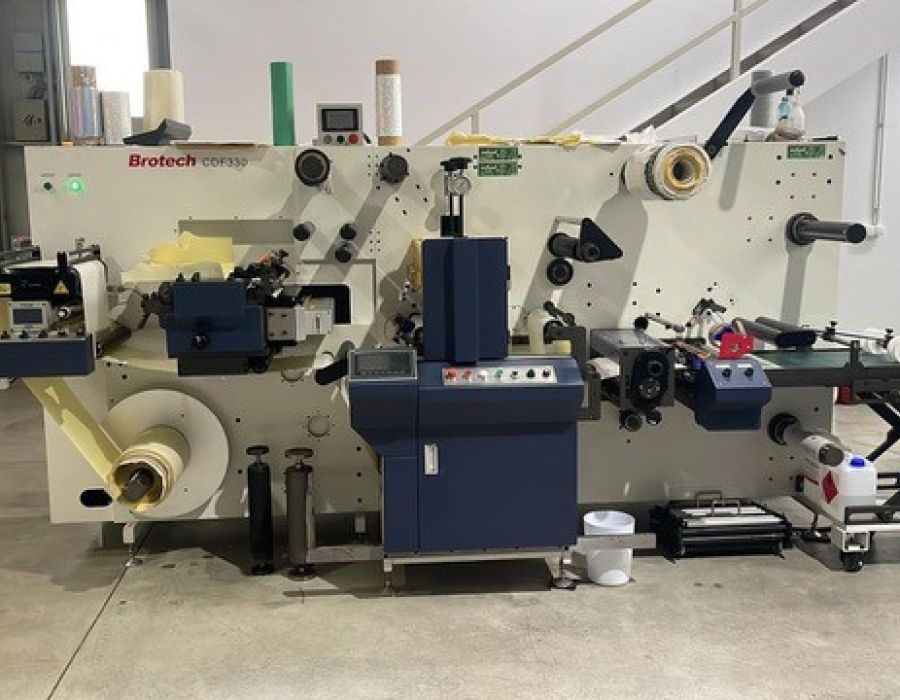

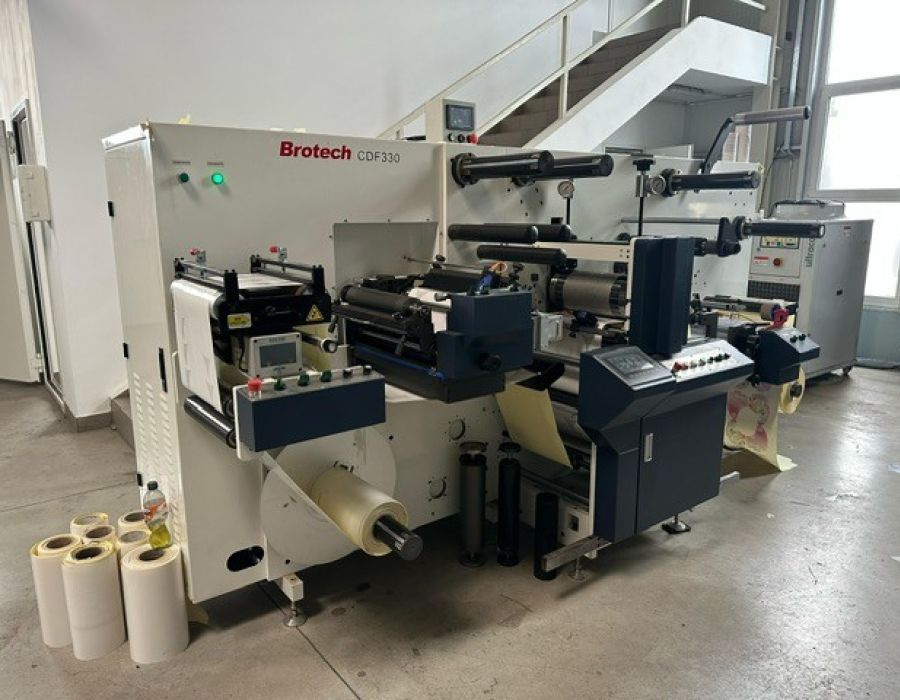

BROTECH CDF Plus 330
Modern and highly versatile label finishing and converting machine – demonstration machine with very low production usage.
We are pleased to offer this BROTECH CDF Plus 330 label finishing and converting machine, currently installed in a professional label production environment.
The machine was originally used as a demonstration machine and has subsequently seen only very limited production use.
It represents an attractive opportunity for a professional label converter looking for a modern finishing platform combining Flexo printing, LED UV curing, cold foil, lamination, semi-rotary die-cutting, slitting, rewinding and sheeting within one production line.
MACHINE HIGHLIGHTS
MACHINE DETAILS
| Manufacturer | Brotech Graphics Co., Ltd. |
| Model | CDF Plus 330 |
| Year of manufacture | August 2019 |
| Serial No. | BT1812006 |
| Working width | 330 mm |
| Maximum web width | 340 mm |
| LED UV lamp | Only 61 operating hours |
| Electrical supply | 380 V / 3P + N + PE / 50–60 Hz / 45 A |
| Condition | Very good / very low usage |
| Availability | Immediately |
The machine has only a few hundred operating hours. The exact machine operating hours can be confirmed once the engineer is on site.
MACHINE CONFIGURATION
Unwinding & Web Handling
- Professional unwinding system
- Maximum web width: 340 mm
- Maximum unwind diameter: 800 mm
- 3″ pneumatic spindle
- Electronic web guiding system
- Edge-reading web guide sensors
- Adjustable roll-diameter monitoring
- Automatic slowdown / stop at roll end
- Web-break monitoring
- NIP roller
- Waste spindle

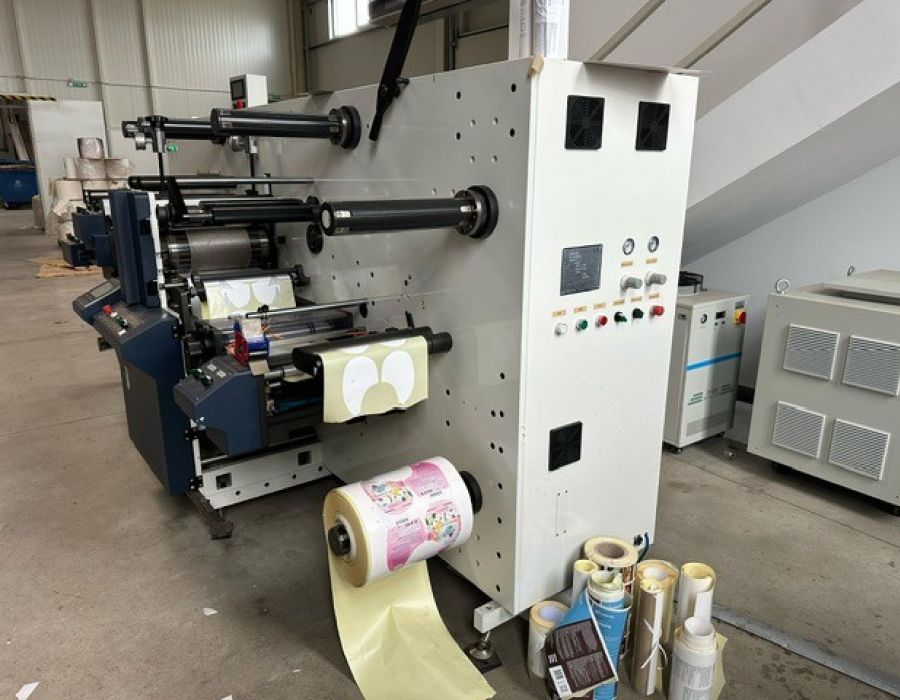

- Professional rewinding system
The complete machine layout incorporates an unwinder, rewinder, NIP roller, unwind spindle, rewind spindle and waste spindle.

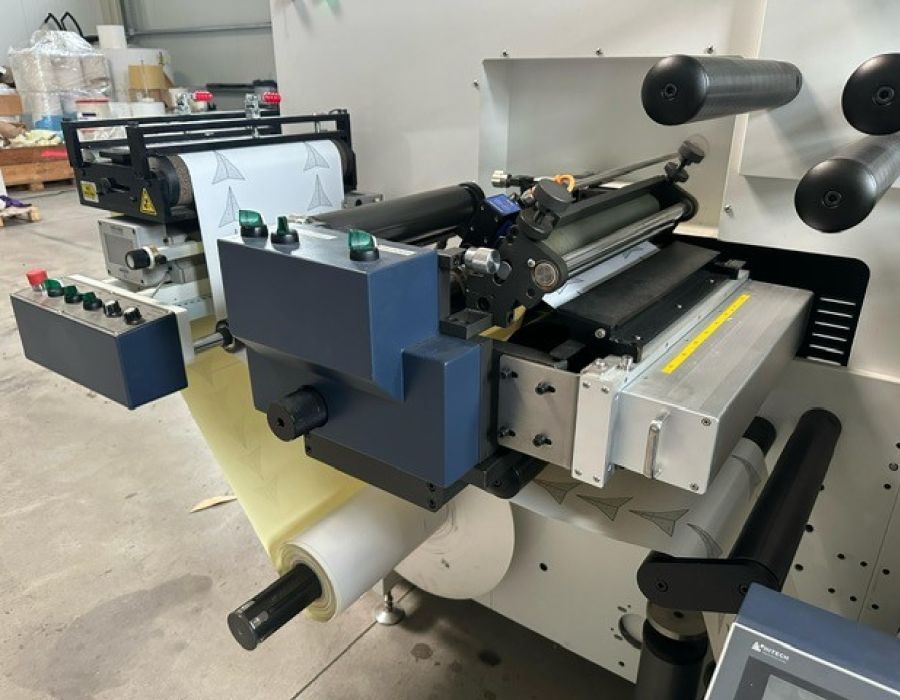

Rotary Flexo Printing Unit
Integrated professional rotary Flexo printing station suitable for:
- Spot colours
- Varnishing
- Coatings
- Primers
- Special applications
- Cold foil applications
- Lamination applications
| Maximum web width | 340 mm |
| Minimum web width | 100 mm |
| Maximum printing width | 330 mm |
| Substrate thickness | 40–250 micron |
| Maximum speed | Up to 120 m/min |
| Repeat range | 60T / 190.5 mm up to 184T / 584.2 mm |
Flexo equipment includes:
- Ink tray
- Ink roller
- Anilox roller
- Doctor blade system
- Plate cylinder
- Lamination unit
- UV curing system
- Chilling roller
LED UV Curing System
The machine is equipped with an integrated LED UV drying and curing system for UV Flexo inks, coatings and varnishes.
- Immediate curing
- Lower heat transfer to the substrate
- Suitable for heat-sensitive materials
- Reduced energy consumption compared with conventional UV systems
- Stable production at higher speeds
- No conventional UV lamp warm-up time
- LED UV operating time only 61 hours
Cold Foil & Lamination
Integrated cold foil and lamination functionality enables the production of premium decorative labels and value-added applications.
- Metallic effects
- Premium wine & spirit labels
- Cosmetic labels
- Luxury packaging labels
- Promotional labels
- Laminated constructions
- Protective films
Semi-Rotary Die-Cutting Unit
The integrated semi-rotary die-cutting station provides high production flexibility for short and medium production runs.
| Maximum web width | 340 mm |
| Minimum web width | 180 mm |
| Minimum repeat | 4″ |
| Maximum repeat | 18″ with 22″ cylinder |
| Maximum semi-rotary speed | 200 RPM |
Main components include:
- Magnetic cylinder
- Anvil cylinder
- Support cylinder
- Pressure bridge
- Pressure bar
- Registration control
The semi-rotary system provides economical production of different label formats, particularly for frequently changing short and medium production runs.
Slitting Unit
- Upper knife shaft
- Upper knives
- Bottom knives
- Minimum slitting width: 25 mm
- Minimum trim width: 5 mm
- Maximum web width: 340 mm
Additional Converting Equipment
- Upper Sewing
- Lower Sewing
- Sheeting unit
- Delivery table / conveyor
- Rewinding
- Waste removal
- Registration control
- Web guiding
This configuration makes the CDF Plus 330 a highly flexible platform for both roll-to-roll and roll-to-sheet converting applications.
Sensor & Registration System
- Roll-end monitoring
- Web monitoring
- Edge-reading web guide
- Flexo / sleeve monitoring
- Flexo registration mark sensor
- Die-cutter registration mark sensor
- Die-cutter zero-position sensor
- Label counter
- Full-rotary zero-position monitoring
Safety System
Comprehensive safety interlocks are installed throughout the machine.
- Web guide clamps
- Flexo section
- Die-cutting section
- Slitting section
- Protective covers
- Emergency stop system
INCLUDED ACCESSORIES
- 2 complete ink trays

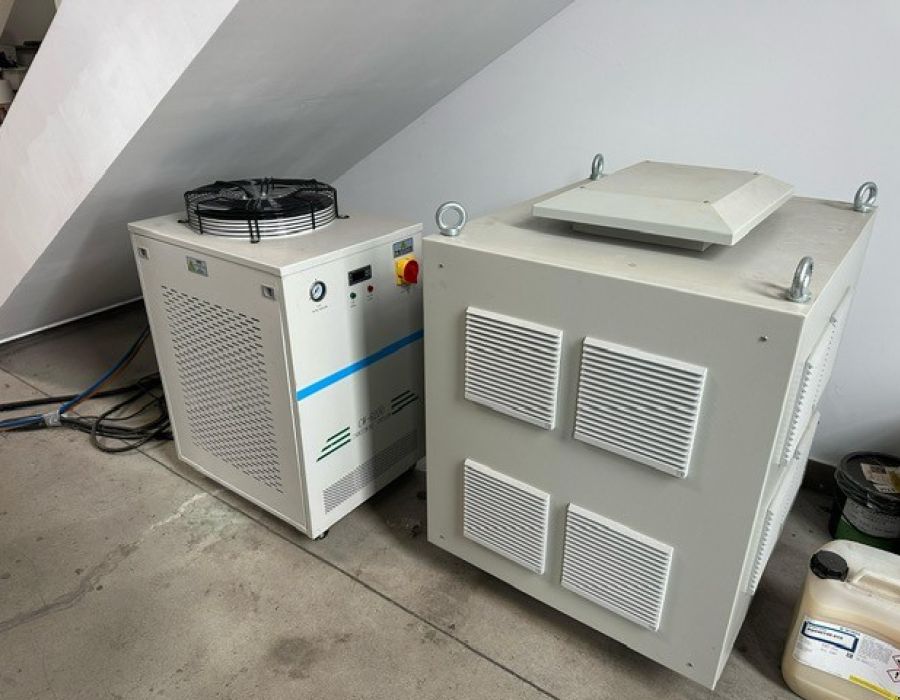

- Chiller
- Existing tooling and accessories belonging to the machine
- Installed web handling equipment
- Integrated LED UV system
- Existing converting equipment
A detailed final tooling list can be confirmed during inspection.
WHY BUY THIS BROTECH CDF PLUS 330?
One Machine – Multiple Processes
One of the biggest advantages of this Brotech is its ability to combine several finishing and converting processes within one compact production platform:
- Flexo printing
- LED UV curing
- Cold foil
- Lamination
- Semi-rotary die-cutting
- Slitting
- Sheeting
- Rewinding
This reduces the need to move jobs between several standalone machines and can significantly improve production flexibility and workflow efficiency.
Extremely Low Usage
Originally used as a demonstration machine and subsequently only lightly used in production, this CDF Plus 330 offers an unusually low production history for a 2019 machine. The LED UV system shows only 61 operating hours.
Ideal for Short and Medium Runs
The semi-rotary die-cutting technology is particularly attractive for converters producing changing formats, premium products and short-to-medium production runs.
High Added-Value Production
Integrated Flexo, cold foil and lamination capabilities allow converters to produce premium labels with coatings, metallic effects, varnishes and protective films.
Attractive Alternative to New Equipment
For converters wanting to increase finishing capacity without the investment level and delivery time associated with a new line, this machine represents an especially attractive alternative.
SUITABLE APPLICATIONS
- Self-adhesive labels
- Wine & spirits labels
- Cosmetic labels
- Pharmaceutical labels
- Food labels
- Promotional labels
- Industrial labels
- Premium labels
- Short and medium production runs
