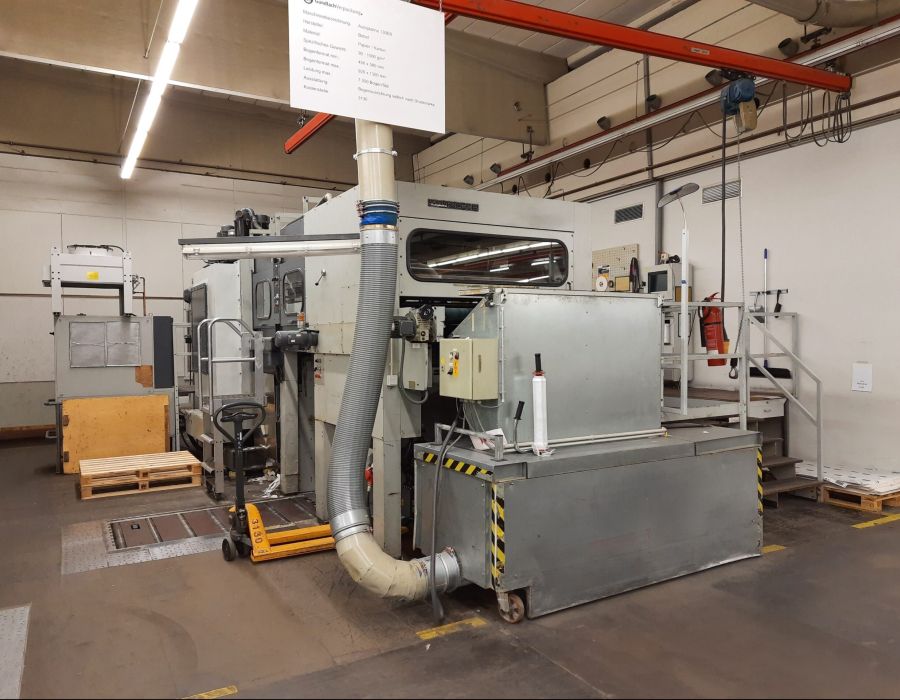

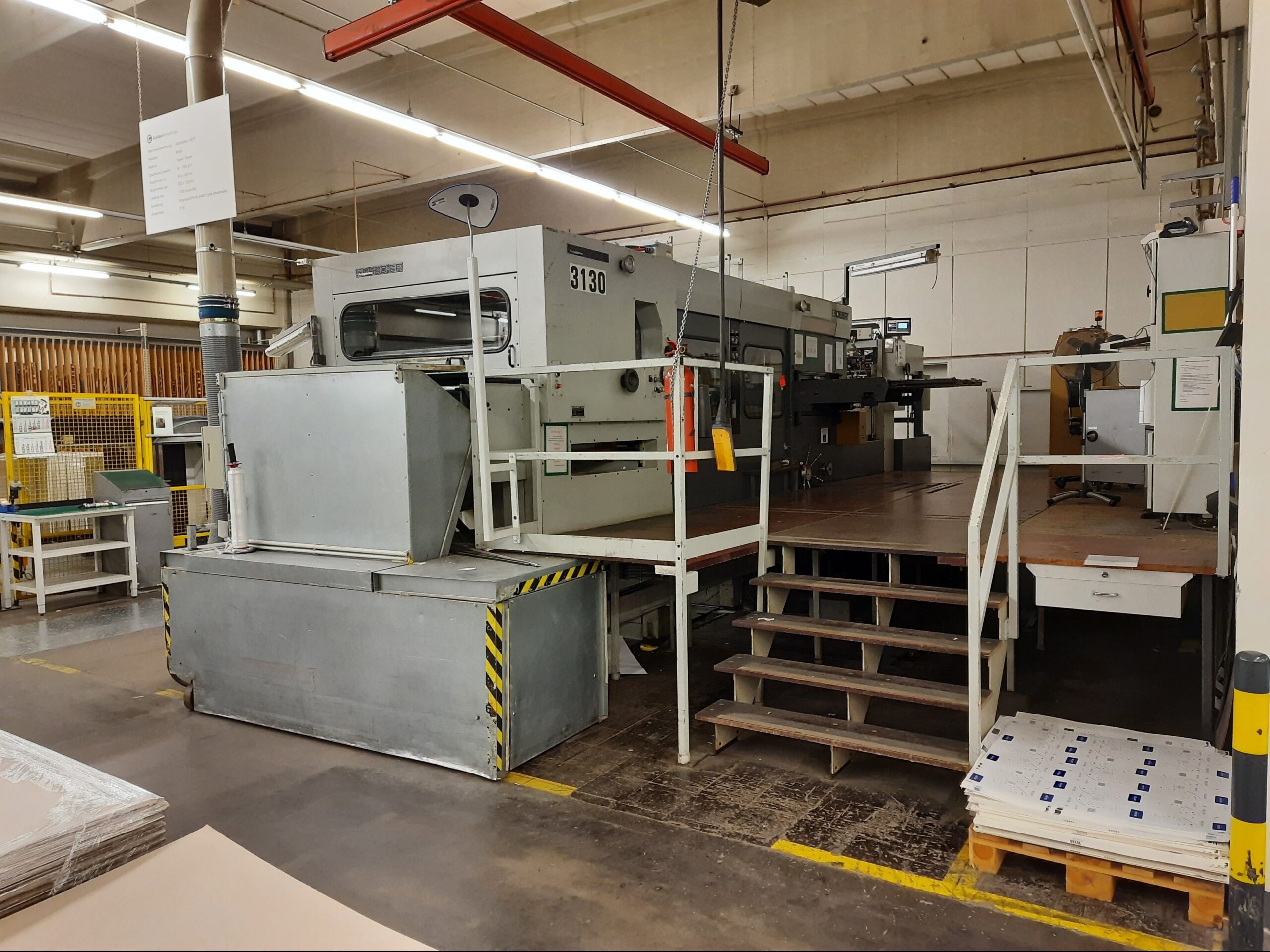

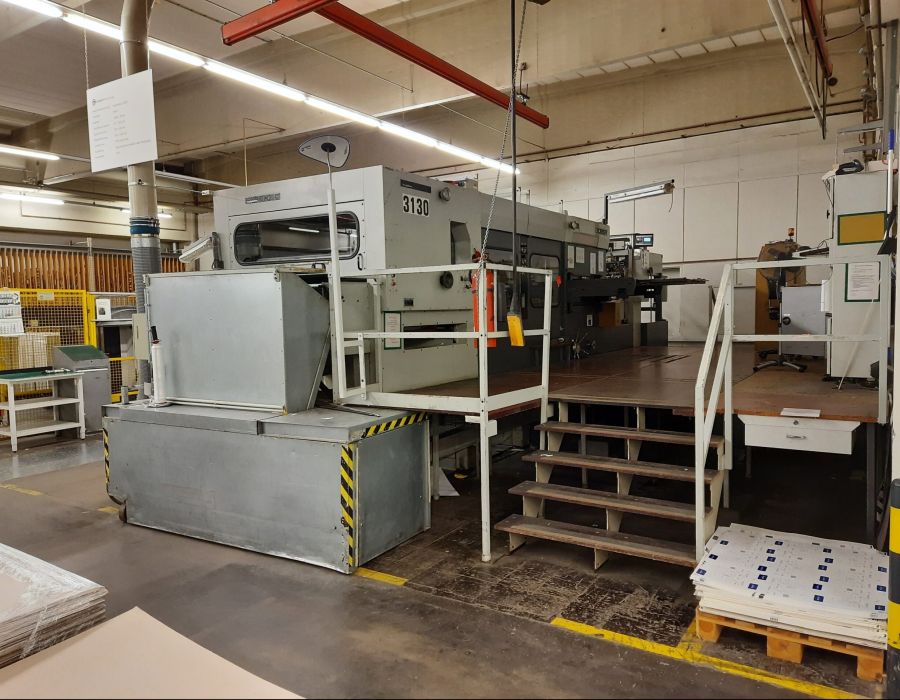

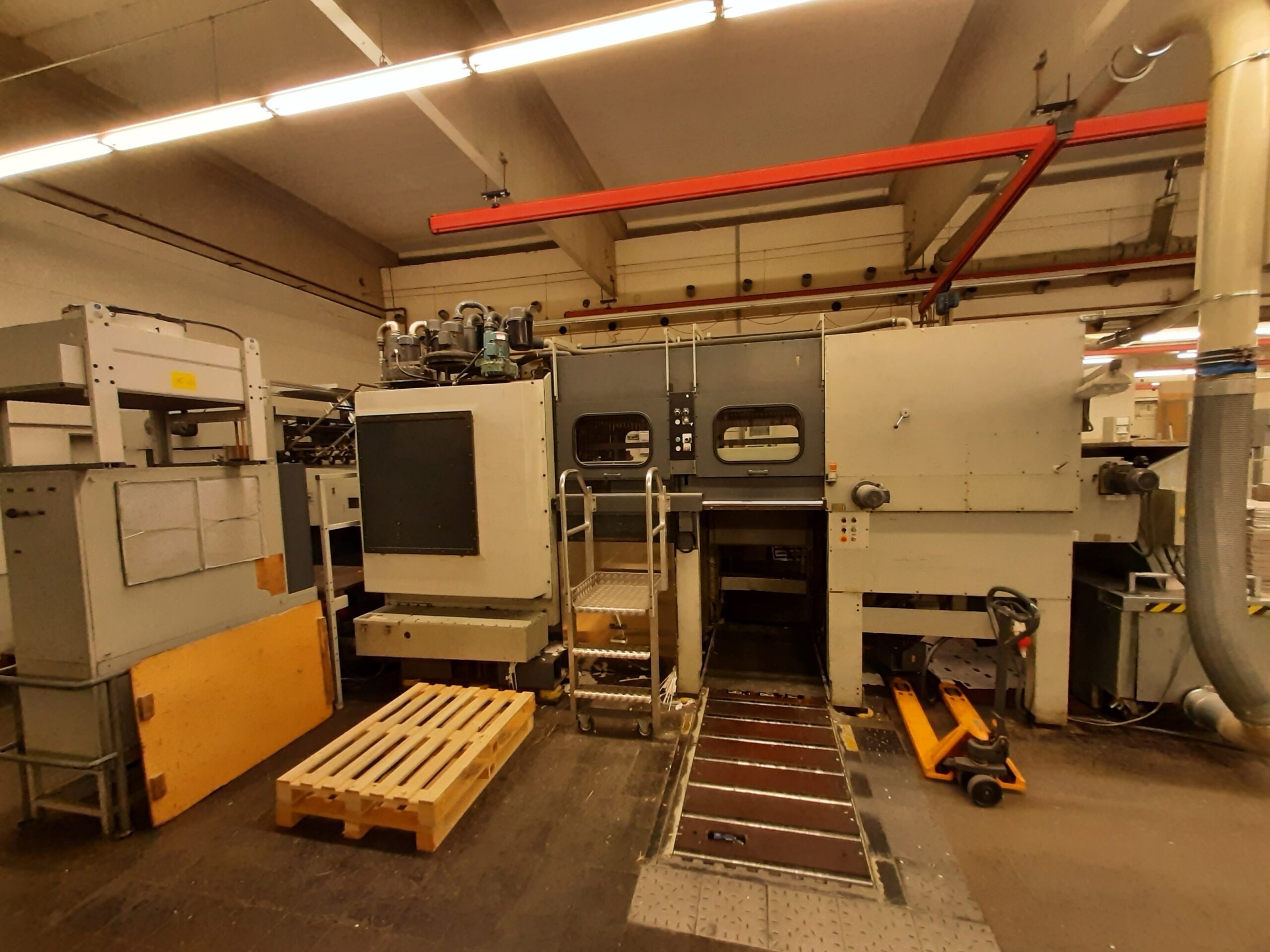

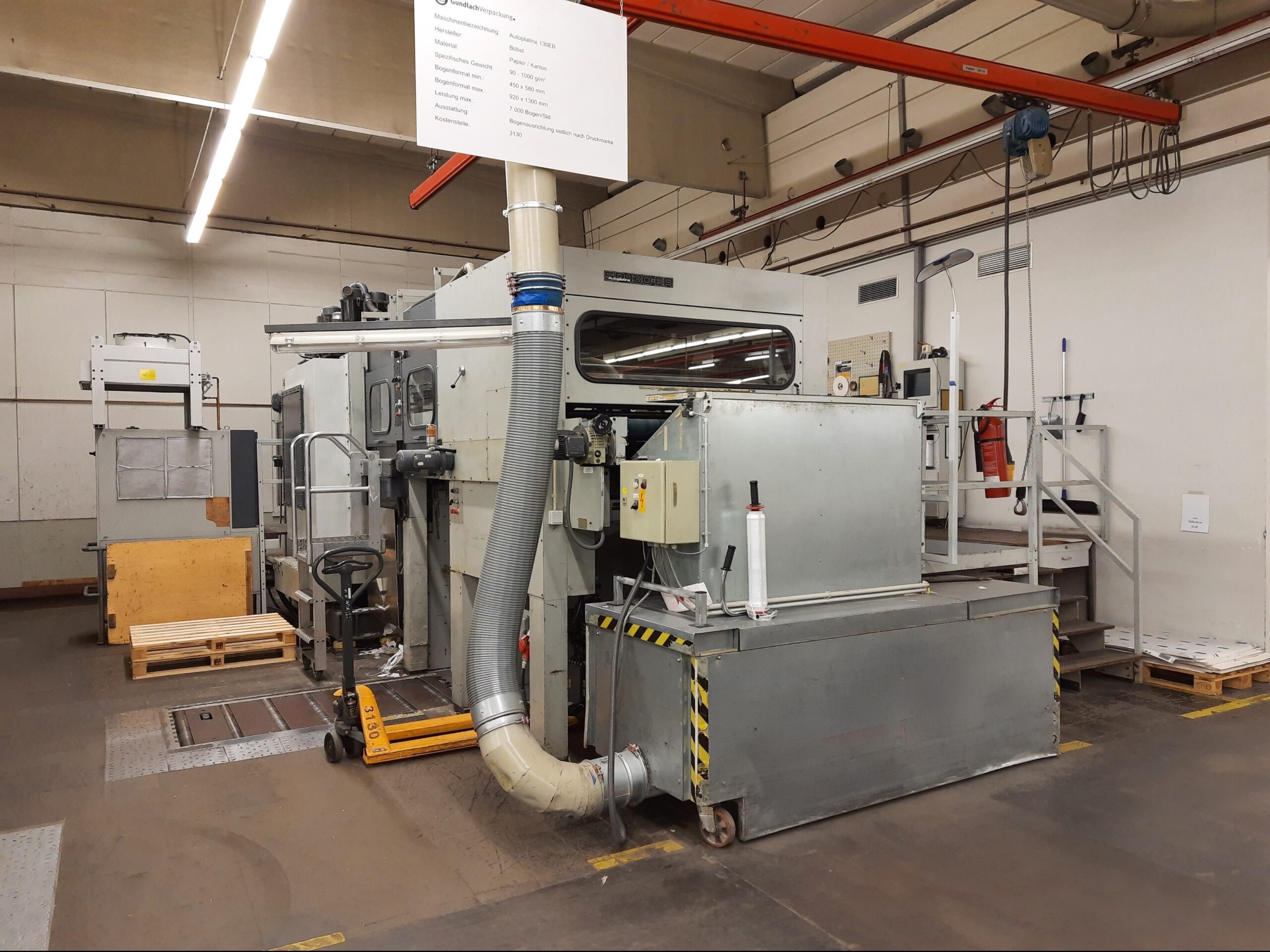

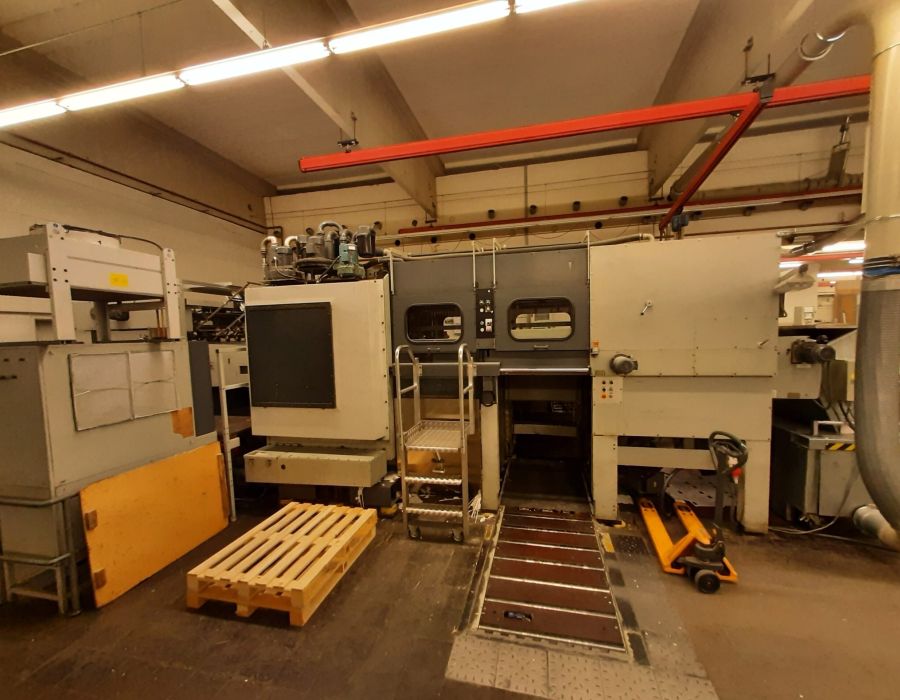

Automatic Die-Cutting Machine
- Sheet Formats
Maximum sheet size:
920 x 1,300 mm
Minimum sheet size:
450 x 580 mm
Working format:
– Max. 890 x 1,270 mm (open chase)
– Max. 900 x 1,300 mm (closed chase)
- Material Specifications
Maximum board thickness:
1.5 mm (cardboard)
Minimum grammage:
90 g/m²
Gripper margin:
10 mm
- Chase Sizes
– 915 x 1,300 mm chase without bar
– 840 x 1,300 mm chase with bar
- Pile Heights (Non-Stop Operation)
Feeder pile height:
Max. 1,500 mm with pallet
Delivery pile height:
Max. 1,400 mm with pallet
Maximum pallet size:
900 x 1,300 mm
- Equipment and Features
– Suitable for carton and paper processing
– Not suitable for corrugated board
– Stripping possible using stripping frame and separation grid
– EMS side lay system for alignment according to printed marks
- Machine Condition
The machine is in generally good condition.
It has been inspected annually by Bobst and has been regularly serviced and maintained by the in-house workshop as well as by Bobst technicians.
