FGT 26-244

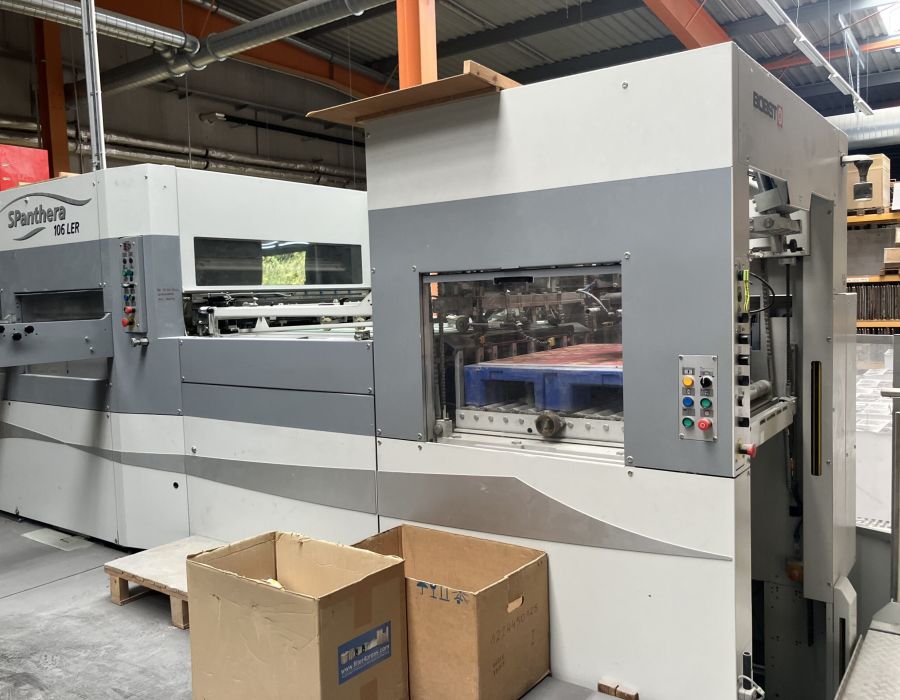

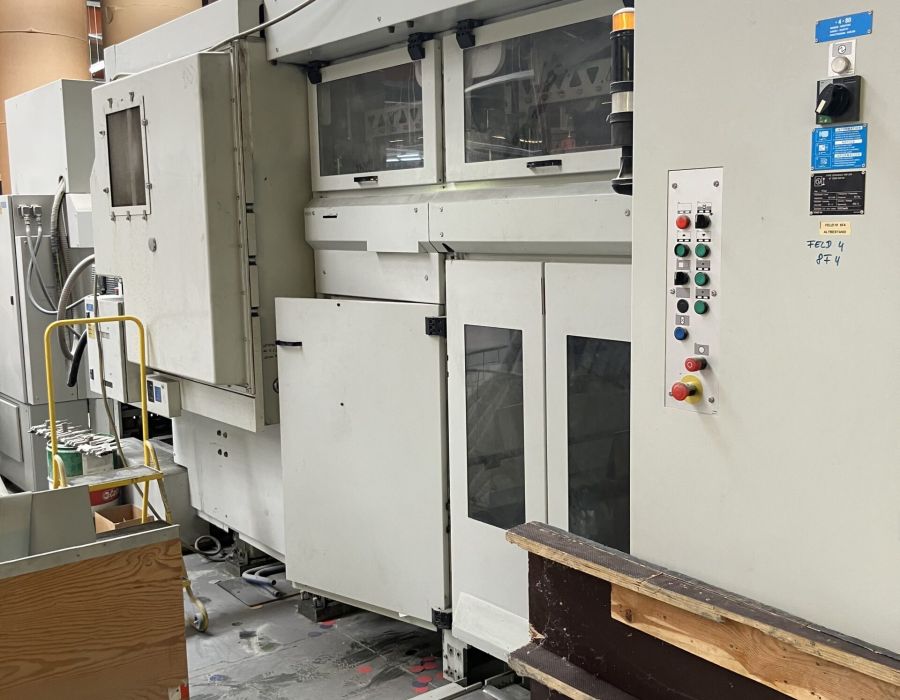

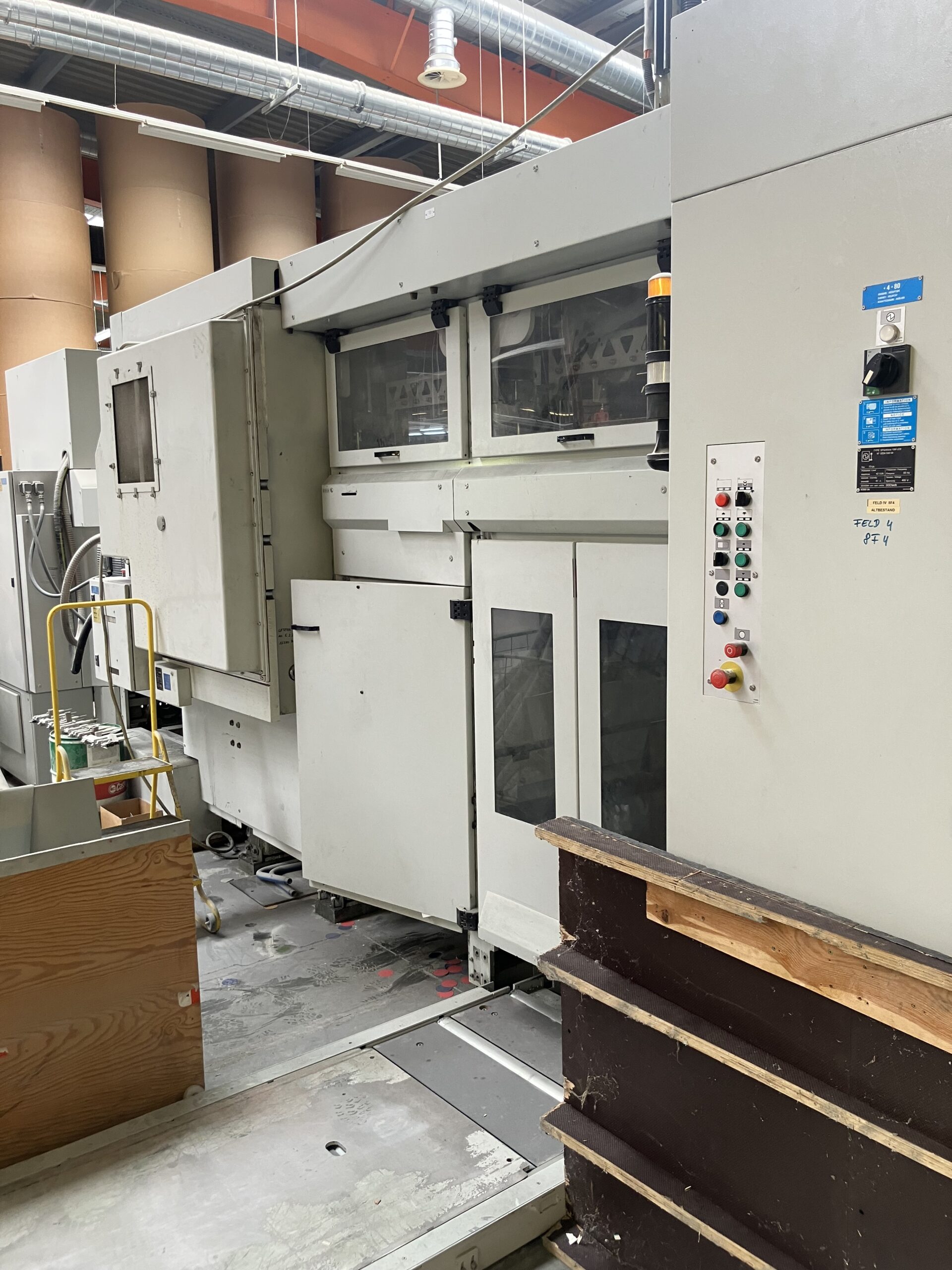

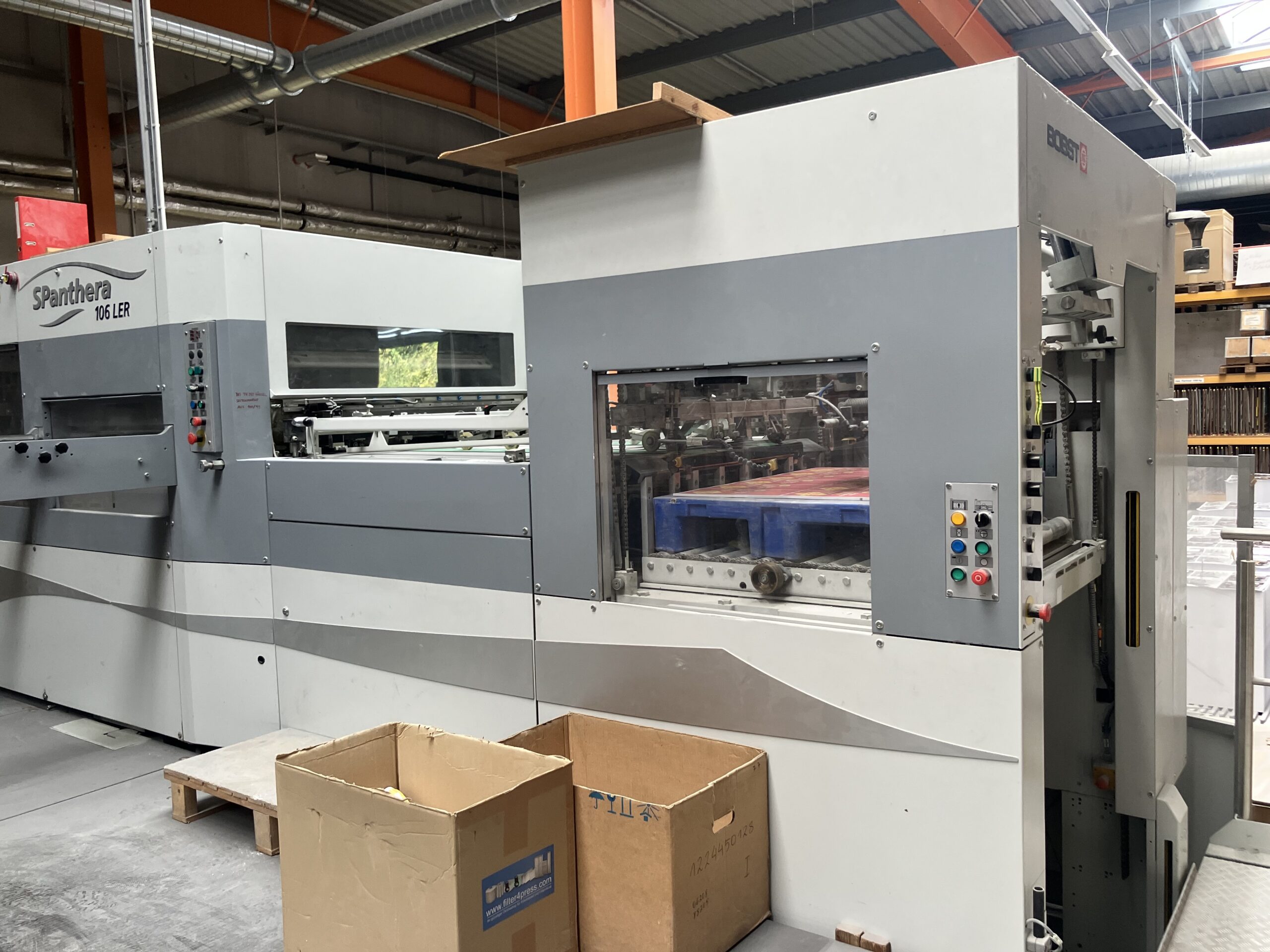

BOBST Autoplatine® SPanthera 106 LER
Die-cutting machine with stripping and blanking capability
Included Standard Options
- E-3 Upper quick-lock frame
- E-5 Compensation plate
- Model: BOBST Autoplatine® SPanthera 106 LER
- Machine Type: Automatic flatbed die-cutting machine with stripping and blanking
- Manufacturer: BOBST
- Category: High-performance die-cutter for folding carton & packaging
- Year of Manufacture: 2007
- Production Status: “Machine under power
- Max. Sheet Size: 760 × 1,060 mm
- Min. Sheet Size: approx. 350 × 400 mm
- Max. Cutting Size: 745 × 1,055 mm
- Gripper Margin: approx. 8–10 mm
- Paperboard Thickness: 0.1 – 2,000 g/m² (paper to heavy board)
- Corrugated Board: up to N-flute / F-flute (depending on tooling)
- Max. Cutting Pressure: up to 260 t (BOBST Autoplatine standard)
- Maximum Mechanical Speed: up to 9,000 sheets/hour
- Automatic register system: Included
- Blanking Capability: Yes (LER = Logistics, Extraction, Removal = full blanking section)
- Stripping Section: Full automatic 3-frame stripping
- Non-Stop Functionality:

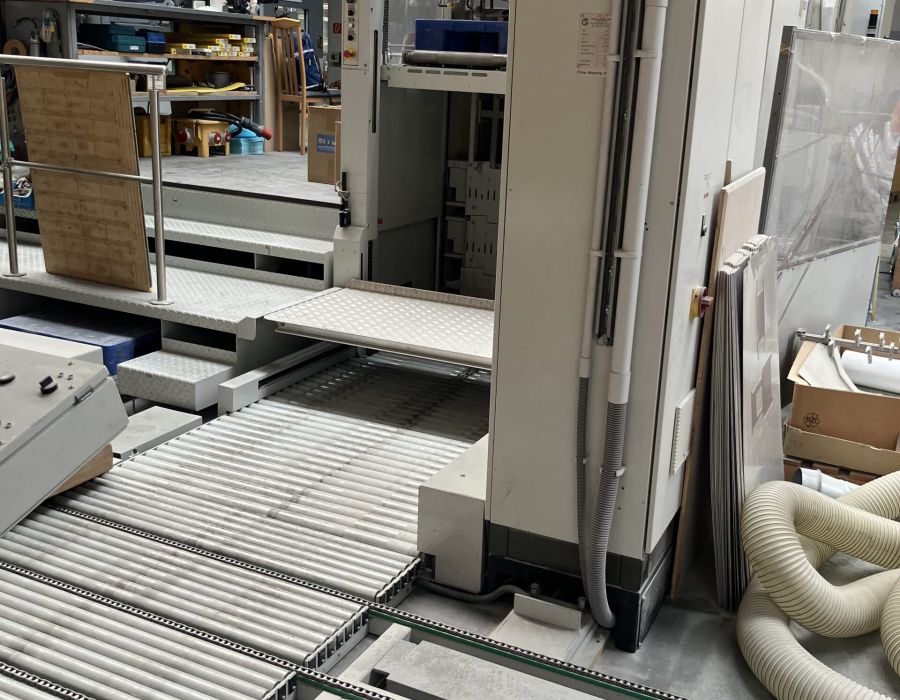

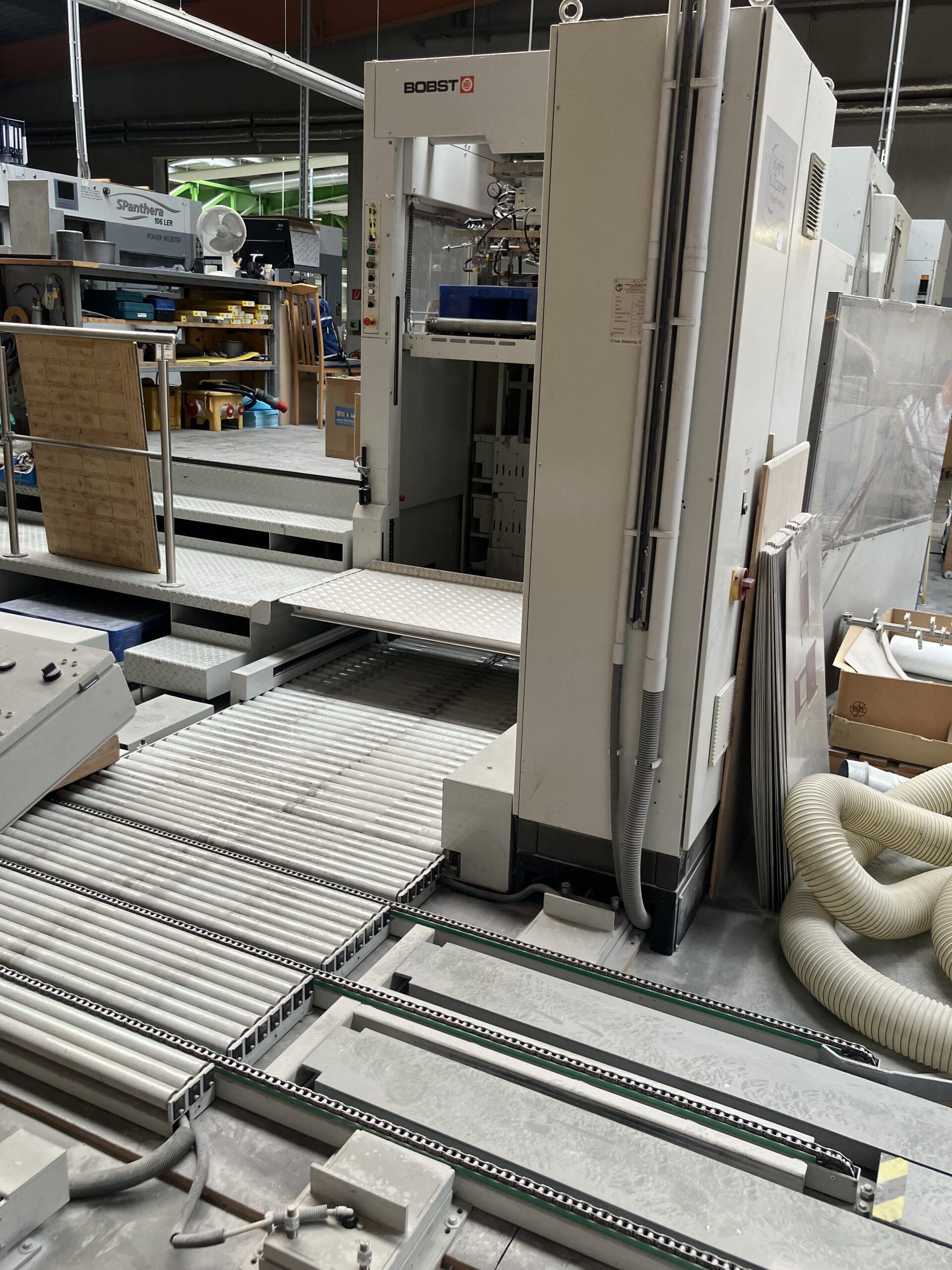

- Non-stop feeder (continuous pile logistics)
- Non-stop delivery (automatic pile change)
| Qty | Option Code | Description |
| 1 | F-8 | Lower drawer frame |
| 1 | F-81 | Lower stripping equipment |
| 1 | H-27 | Mounting material for top tool quick-lock system |
| 1 | B-23 | Bernoulli braking system – waste stripping section |
| 1 | B-25 | Bernoulli braking system – delivery section |
| 1 | B-42 | VIEW Kit |
| 1 | B-54 | Interface for APT at feeder |
| 1 | B-73 | Podium extension with walkway |
| 1 | B-10 | High-speed paper feeding device |
| 1 | B-11 | Auxiliary blower device for locking section |
| 1 | C-31 | Automatic non-stop rack with side adjustment for APT |
| 1 | C-44 | Special APT execution “customer specification” |
| 1 | C-8 | Motorised vertical adjustment of suction head |
| 1 | D-7 | Reinforced transport equipment |
| 1 | D-91 | Double-sheet control with contact |
| 1 | H-62 | Lower universal blanking tool – Angle Lock system |
| 1 | H-63 | Universal frame Angle Lock |
| 1 | H-78 | Device for full-sheet delivery |
| 1 | V-1 | Warranty extension |
| 1 | B-7 | Podium for existing Speria 106E No. 0538 006 02 |
| 1 | — | Installation / commissioning |
| 1 | — | Additional services |
